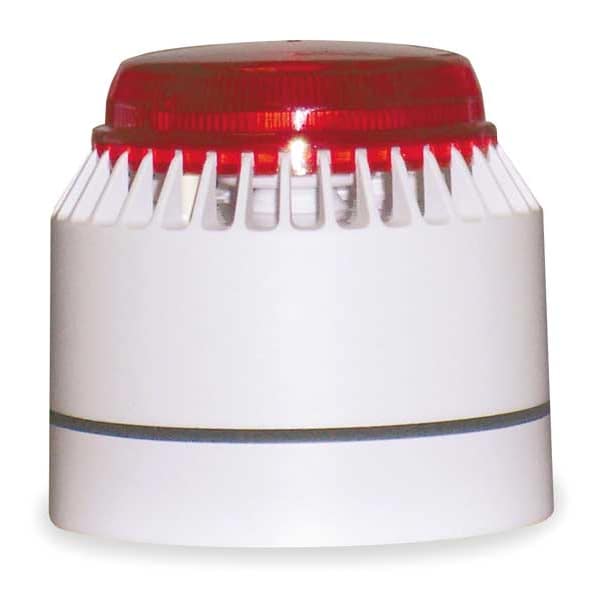

Horn Strobe, White/Red, ABS, 18 to 30VDC
| Item | Horn Strobe |
|---|---|
| Housing Material | ABS, Plastic |
| Mounting | Surface |
| Amps | 0.068 AC |
| Diameter | 3-2/3 in |
| Color | White, Red |
| Audible Alarm Type | Siren |
| Voltage | 18 to 30V DC |
| Standards | CE |
| Decibels | 82 to 100dB @ 10 ft |
| Sound Pattern | Continuous |
| Visual Indicator Type | Strobe |
| Lamp Life | 10,000 hr |
| Flashes per Minute | 60 |
| Current Drawn | 0.068 A |
| Height | 3-1/2 in |
| Lens Design | Strobe Tube |
| Lens Color | Red |
| Operating Temp. | 14 Degrees to 131 Degrees F |
| Vibrating | No |
| Housing Color | White |
| Power Source | Wire |
| Input Voltage | 30 V DC |
| Features | The Beacon Will Operate Jointly with any Tone Selected, The LP7 Features a Bright Xenon Strobe that Produces 0.7 Joules of Flash Energy |
| Overall Width | 3-19/32 in |
| Lens Material | ABS, Plastic |
| Overall Depth | 1-21/32 in |
| Rating | NEMA 4X |
| Overall Length | 3-1/2 in |
| Vibration | No Vibration |
| Light Source | Xenon |
| Operating Temperature - Minimum | 14 deg F |
| For Hazardous Location | Not Applicable |
| Sound Continuity | Continuous, Pulse |
| Mounting Style | Surface Mount |
| Alarm Volume @ 1 m - Minimum | 92 dBA |
| Legend | Not Applicable |
| Includes Batteries | Not Applicable |
| Operating Current | 0.068 A |
| Operating Temperature - Maximum | 131 deg F |
| Brightness Selection | Fixed Brightness |
| Number of Sound Patterns | 1 |
| Lifespan | 10,000 hr |
| Battery Size | Not Applicable |
| IP Rating | IP54, IP65 |
| Control Protocol | Direct Wire |
| NEMA Rating | NEMA 4X |
| Number of Batteries | Not Applicable |
| Alarm Volume @ 1 m - Maximum | 110 dBA |
| Overall Diameter | 3-21/32 in |
| Lens Shape | Cylinder |
| Alarm Volume @ 10 ft - Maximum | 100 dBA |
| Alarm Volume @ 10 ft - Minimum | 82 dBA |
| Volume Selection | Selectable Volume |
| Sound Style | Tone |
| Light Operating Mode | Strobe |
| Operating Voltage | 18 to 28V DC |
| Country of Origin (subject to change) | United Kingdom |
| Package Quantity | 1 |
