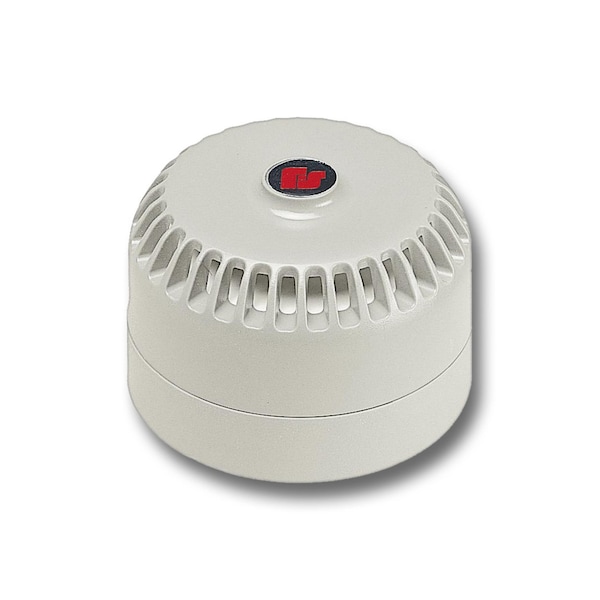

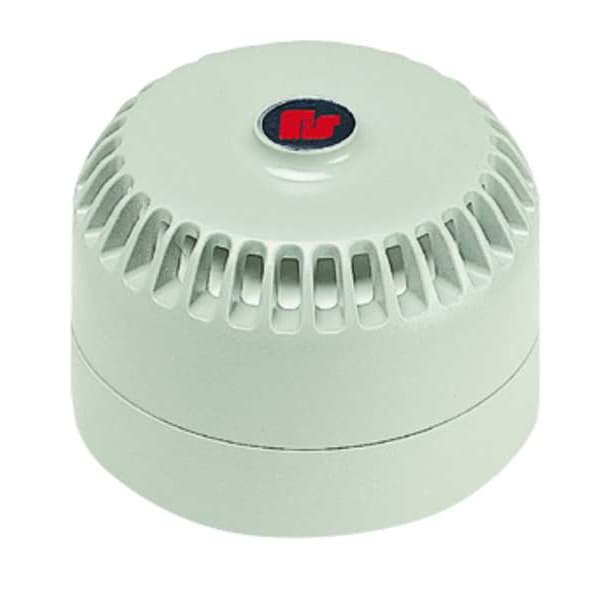

Low Profile Mini Sounder, Outdoor, 9-28VDC
| Item | Low Profile Mini Sounder |
|---|---|
| Housing Material | ABS Plastic |
| Mounting | Surface |
| Amps | 4 to 33mA |
| Diameter | 3-5/8 in |
| Color | White |
| Audible Alarm Type | Siren |
| Voltage | 9 to 28V DC |
| Standards | CE, UKCA |
| Indoor/Outdoor | Indoor, Outdoor |
| Decibels | 82 to 100dB |
| Sound Pattern | Continuous |
| Width | 3-5/8 in |
| Depth | 1-7/8 in |
| Visual Indicator Type | No Visual Indicator |
| Operating Temp. | -13 Degrees to 158 Degrees F |
| Vibrating | No |
| Height | 3 in |
| Alarm Type | Audible |
| Power Source | Wire |
| Input Voltage | 28 V DC |
| Overall Width | Not Applicable |
| Features | PLC Compatible, Remote Activation upto Two Tones |
| Overall Depth | 3 in |
| Overall Length | Not Applicable |
| Product Type | Horn |
| Material | ABS |
| Rating | NEMA 4X |
| Vibration | No Vibration |
| Mounting Style | Surface Mount |
| Sound Style | Siren |
| NEMA Rating | NEMA 4X |
| Sound Continuity | Continuous |
| Number of Sound Patterns | 32 |
| Operating Current | 0.004 to 0.033 A |
| For Location | Indoor, Outdoor |
| Alarm Volume @ 10 ft - Minimum | 82 dB |
| Alarm Volume @ 10 ft - Maximum | 100 dB |
| IP Rating | IP54, IP65 |
| Alarm Volume @ 1 m - Minimum | 92 dB |
| Operating Temperature - Minimum | -13 deg F |
| Alarm Volume @ 1 m - Maximum | 110 dB |
| Overall Diameter | 3-11/16 in |
| Connection Type | Block |
| Operating Temperature - Maximum | 158 deg F |
| Volume Selection | Selectable Volume |
| Operating Voltage | 9 to 28V DC |
| Country of Origin (subject to change) | United Kingdom |
| Package Quantity | 1 |
