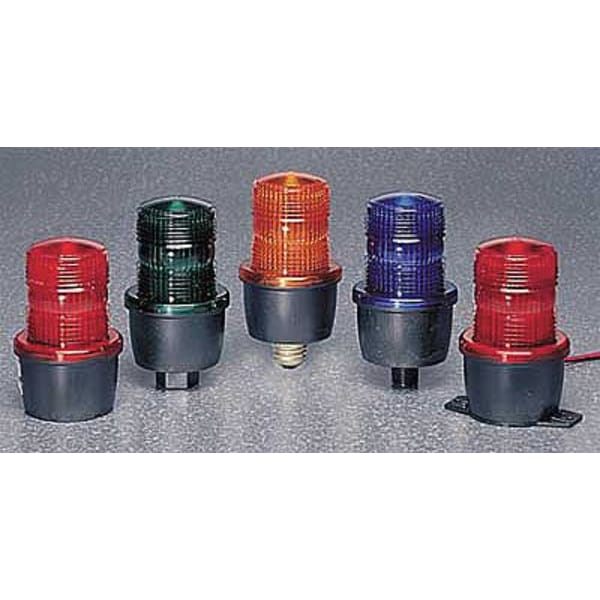

Low Profile Warning Light, Strobe, Red
| Item | Warning Light |
|---|---|
| Color | Red |
| Lamp Type | Strobe Tube |
| Power Source | Wire |
| Lamp Life | 7,000 hr |
| Lens Material | Polycarbonate |
| Flashes per Minute | 80 |
| Height | 5-3/4 in |
| Housing Material | Polycarbonate |
| Standards | CE, CSA Certified, cUL Listed, UKCA, UL Listed |
| Diameter | 3-1/8 in |
| Features | Conformal Coated PCBA |
| Current Drawn | 0.10 to 0.44A DC |
| Light Output | 2.2 Joules |
| Mounting | 1/2 in NPT |
| Operating Temp. | -31 to 150 deg F |
| Rating | IP66, NEMA 4X |
| Lens Design | Screw-on Dome |
| Voltage | 48 V DC |
| For Use With | Indoor, Outdoor, Security |
| Includes | Surface Gasket |
| NEMA Rating | NEMA 4X |
| Connection Type | Wire Leads |
| Audible Alarm Type | Visual |
| Product Type | Strobe Light |
| Lifespan | 4,000 hr |
| Number of Batteries | Not Applicable |
| Overall Length | Not Applicable |
| Operating Temperature - Maximum | 150 deg F |
| Requires Base | Base Required |
| For Location | Not Applicable |
| Mounting Mechanism | MNPT |
| Operating Temperature - Minimum | -31 deg F |
| Footprint Shape | Circle |
| For Hazardous Location | Not Applicable |
| Control Protocol | Direct Wire |
| Footprint Diameter | 3-1/8 in |
| Includes Mounting Hardware | Mounting Hardware Included |
| Battery Size | Not Applicable |
| Housing Color | Black |
| Operating Current | 0.100 to 0.440 A @ 12 to 48V DC |
| Light Operating Mode | Strobe |
| Includes Batteries | Not Applicable |
| Footprint Length | Not Applicable |
| Runtime | Not Applicable |
| Brightness Selection | Fixed Brightness |
| Mounting Style | Flush Mount |
| Light Intensity | 175,000 cd |
| Lens Color | Red |
| IP Rating | IP69K, IP66 |
| Overall Depth | 5-13/16 in |
| Overall Diameter | 3-1/8 in |
| Lens Shape | Dome |
| Light Source | LED |
| Lamp Color | Not Applicable |
| Overall Width | Not Applicable |
| Footprint Width | Not Applicable |
| IO-Link Compatibility | Not Applicable |
| Operating Voltage | 12 to 48V DC |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
