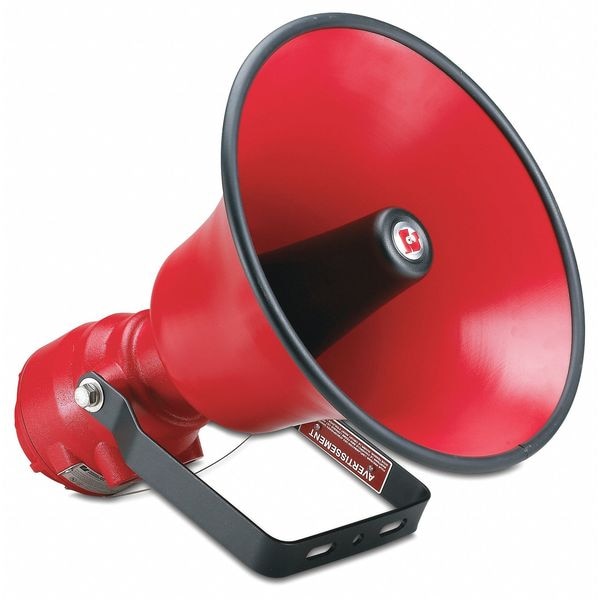

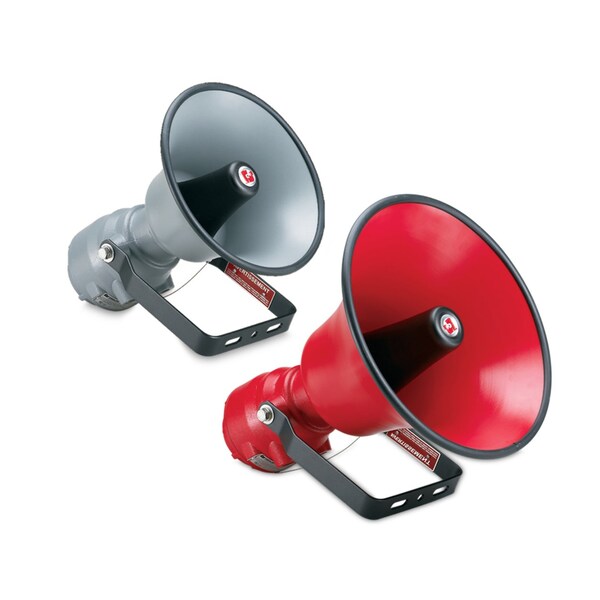

PA Weatherproof Speaker, Al, 1 Channel
| Item | PA Weatherproof Speaker |
|---|---|
| Type | Explosion-Proof |
| Color | Red |
| Band Type | CB |
| Number of Channels | 1 |
| For Use With | Public Address Systems |
| Includes | Not Applicable |
| Power Taps @ 25V | 1 W, 2 W, 7 W, 15 W |
| Material | Aluminum |
| Output Watts | 15 W |
| Power Taps @ 75V | 1 W, 2 W, 7 W, 15 W |
| Depth (In.) | 16-19/64 |
| Standards | CSFM, cUL Listed, UL Fire, UL Listed |
| Height (In.) | 17 |
| Width (In.) | 13-7/64 |
| Width | 13.1 in |
| Weight | 15.70 lb |
| Overall Width | 13 in |
| Overall Height | 17 in |
| Dispersion - Conical | 60 deg |
| Input Band | CB |
| For Location | Outdoor, Indoor |
| Mounting Style | Surface Mount |
| Overall Depth | 16-1/4 in |
| Transformer Taps @ 70V | 1 W, 2 W, 7 W, 15 W |
| Includes Transformer | Transformer Included |
| Housing Material | Aluminum |
| IP Rating | IP65 |
| For Hazardous Location | Class I, Division 2, Class II, Division 2 |
| Output Wattage - Peak | Not Applicable |
| Sensitivity | 116 dBA |
| Power Style | Powered |
| Explosion-Proof Standards | UL 1203 Explosion-Proof |
| Power Voltage | Not Applicable |
| Frequency Response - Minimum | 400 Hz |
| NEMA Rating | NEMA 4X |
| Frequency Response - Maximum | 4,000 Hz |
| Dispersion - Horizontal | Not Applicable |
| Driver Configuration | 1-Way |
| Transformer Taps @ 25V | 1 W, 2 W, 7 W, 15 W |
| Dispersion - Vertical | Not Applicable |
| Impedance | Not Applicable |
| Housing Color | Red |
| Compatible Input Voltage | 25V, 70V |
| Output Wattage - RMS | 15 W |
| Enclosure Style | Horn |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
