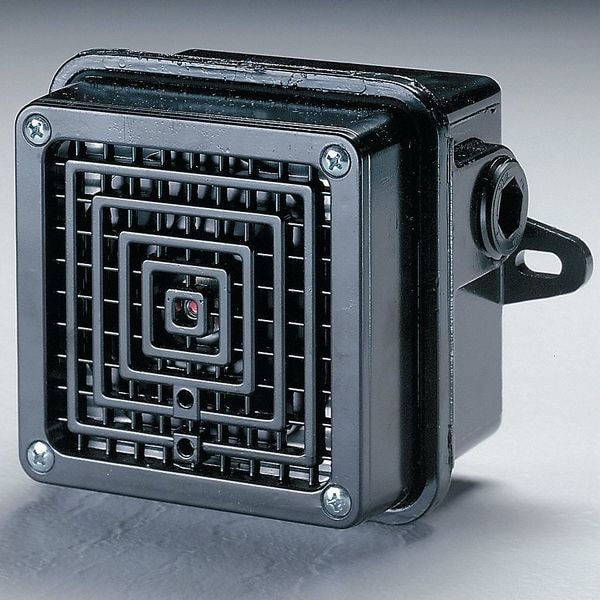

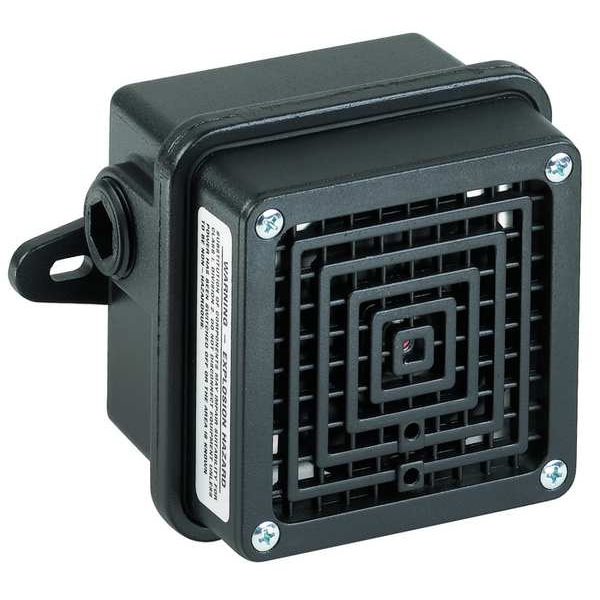

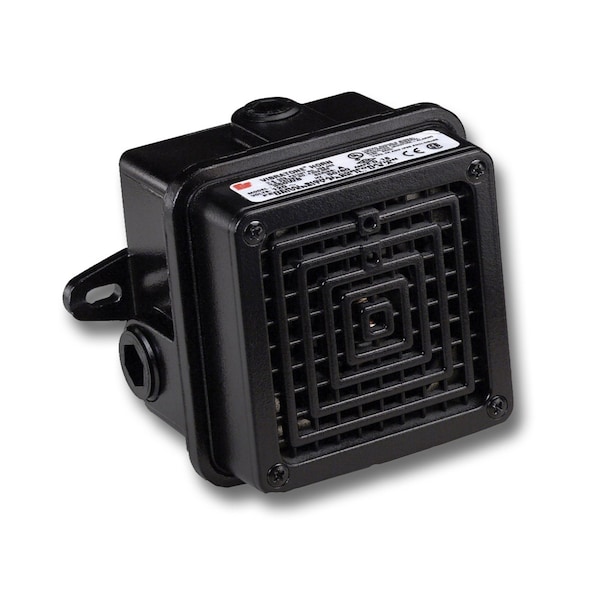

Signaling Device, 120VAC, 0.18 AC, Black
| Item | Signaling Device |
|---|---|
| Housing Material | Zinc |
| Mounting | Surface, Wall, Panels, Flush |
| Amps | 0.18 AC |
| Color | Black |
| Audible Alarm Type | Bell |
| Voltage | 120V AC |
| Standards | CSA Certified, cUL Listed, UL Listed |
| Indoor/Outdoor | Indoor, Outdoor |
| Decibels | 100dB @ 10 ft |
| Sound Pattern | Continuous |
| Operating Temp. | -67 Degrees to 150 Degrees F |
| Width | 4.5313 in |
| Height | 4-1/2 in |
| Hazardous Division | 2 |
| Depth | 3-5/8 in |
| Vibrating | Yes |
| Visual Indicator Type | No Visual Indicator |
| Hazardous Class | I |
| Includes | Diaphragm |
| Power Source | AC Supply |
| Alarm Type | Audible |
| Features | Vibratone Horns are Excellent for General Alarm |
| Overall Width | 4-1/2 in |
| Input Voltage | 120 V AC |
| Overall Depth | 3-21/32 in |
| Rating | NEMA 4X |
| Product Type | Horn |
| Overall Length | 4-1/2 in |
| Material | Die-Cast Zinc |
| Connection Type | Block |
| Sound Continuity | Continuous |
| Operating Temperature - Maximum | 104 deg F |
| Alarm Volume @ 10 ft - Maximum | 100 dBA |
| Sound Principle | Vibrating |
| Mounting Style | Surface Mount, Flush Mount |
| For Location | Indoor, Outdoor |
| IP Rating | IP69K, IP65 |
| Alarm Volume @ 1 m - Maximum | 110 dBA |
| Sound Style | Horn |
| Operating Temperature - Minimum | -65 deg F |
| For Hazardous Location | Class I, Division 2, Class II, Division 2 |
| NEMA Rating | NEMA 4X |
| Operating Current | 0.180 A |
| Vibration | Vibrating |
| Operating Voltage | 120V AC |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
