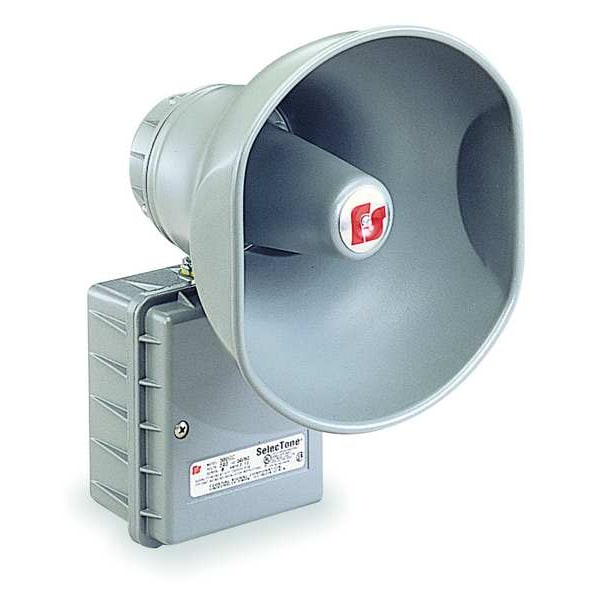

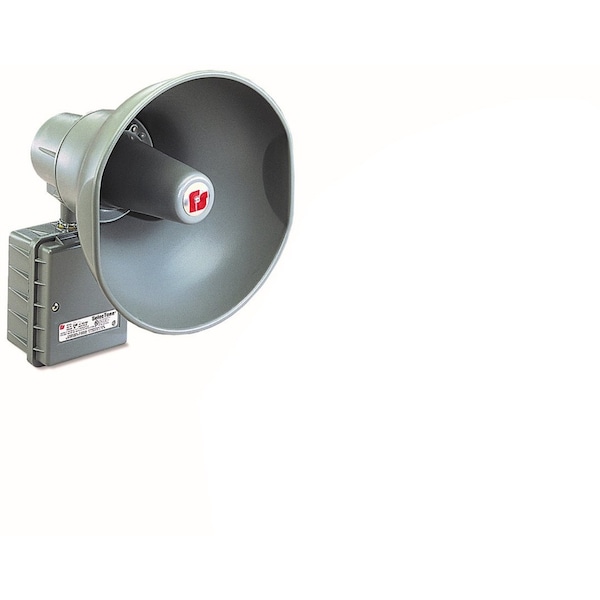

Signaling Device, 120VAC, 0.27 AC, Gray
| Item | Signaling Device |
|---|---|
| Housing Material | Die Cast Aluminum |
| Mounting | Surface |
| Amps | 0.27 AC |
| Color | Grey |
| Audible Alarm Type | Horn |
| Voltage | 120V AC |
| Standards | CSFM, cUL Listed, UL Listed |
| Indoor/Outdoor | Indoor, Outdoor |
| Decibels | 110dB @ 10 ft |
| Sound Pattern | Continuous |
| Depth | 8-1/4 in |
| Vibrating | No |
| Height | 12-1/4 in |
| Width | 8 in |
| Operating Temp. | -67 Degrees to 150 Degrees F |
| Visual Indicator Type | No Visual Indicator |
| Includes | Not Applicable |
| Housing Color | Gray |
| Overall Width | 8 in |
| Overall Height | 12-1/2 in |
| Overall Depth | 8-1/2 in |
| Rating | IP 55, NEMA 3R |
| NEMA Rating | NEMA 3R |
| Number of Channels | Not Applicable |
| Driver Configuration | 1-Way |
| Power Style | Powered |
| Output Wattage - Peak | Not Applicable |
| Output Wattage - RMS | Not Applicable |
| Sensitivity | 120 dBA |
| Power Voltage | 120VAC, 24 V DC, 240VAC |
| Impedance | Not Applicable |
| IP Rating | IP54 |
| Compatible Manufacturer Part Number | 300CK, AM25CK, AM70CK, E-300CK, T-300CK |
| For Hazardous Location | Class I, Division 2 |
| Mounting Style | Surface Mount |
| For Location | Indoor, Outdoor |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
