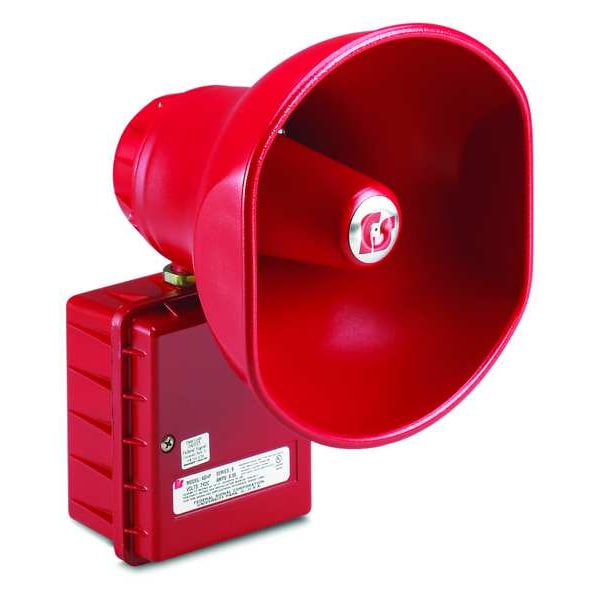

Speaker, 113db at 10 ft., Wall Mounting
| Item | Speaker |
|---|---|
| Type | Horn |
| Color | Red |
| Number of Channels | Not Applicable |
| For Use With | Public Address Systems |
| Includes | In-Line Capacitor |
| Output Watts | 30 W |
| Height (In.) | 14 |
| Width (In.) | 10-1/2 |
| Material | Aluminum |
| Power Taps @ 75V | 7 W, 15 W, 30 W |
| Depth (In.) | 11 |
| Power Requirement | 110 V AC |
| Power Taps @ 25V | 7 W, 15 W, 30 W |
| Standards | CSFM, UL Fire |
| Weight | 8.10 lb |
| Height | 14 in |
| Width | 10-1/2 in |
| Overall Width | 10-1/2 in |
| Overall Height | 14 in |
| Frequency Response - Minimum | 400 Hz |
| For Location | Outdoor, Indoor |
| Driver Configuration | 1-Way |
| Sensitivity | 122 dBA |
| Output Wattage - RMS | 30 W |
| For Hazardous Location | Not Applicable |
| Dispersion - Horizontal | Not Applicable |
| Dispersion - Vertical | Not Applicable |
| Transformer Taps @ 25V | 7 W, 15 W, 30 W |
| Dispersion - Conical | 60 deg |
| IP Rating | IP54 |
| Includes Transformer | Transformer Included |
| Power Style | Powered |
| Overall Depth | 11 in |
| Power Voltage | Not Applicable |
| NEMA Rating | NEMA 3R |
| Housing Color | Red |
| Impedance | Not Applicable |
| Compatible Input Voltage | 25V, 70V |
| Enclosure Style | Horn |
| Transformer Taps @ 70V | 7 W, 15 W, 30 W |
| Output Wattage - Peak | Not Applicable |
| Frequency Response - Maximum | 4,000 Hz |
| Housing Material | Aluminum |
| Mounting Style | Not Applicable |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
