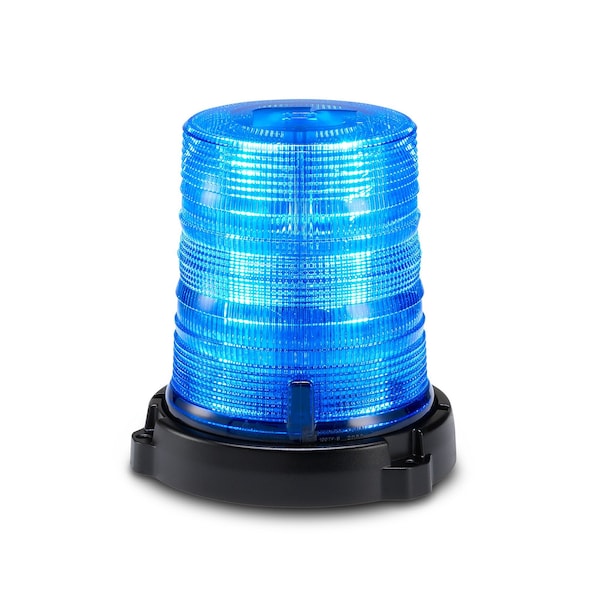

Spire(R) LED Beacon, Single Color
| Item | Perimeter Light |
|---|---|
| Power Source | Batteries |
| Flashes per Minute | 60 |
| Standards | SAE J845 Class 1 |
| Features | Built-In industry-Standard Water Tight Cable Connection |
| Shape | Round |
| Lens Color | Amber |
| Base Material | Polycarbonate |
| Includes | (2) Terminal Contacts, (3) #10 Machine Nuts, (3) #10 Machine Screws (7/8 in Long), (3) #10 Machine Screws(1 3/4 in Long), (3) #10 Panhead Phillips Screw, (3) #8 Panhead Phillips Screw, Locking Wedge, Terminated Power Wire, 18 AWG, Black, Terminated Power Wire, 18 AWG, Red, Waterproof Connector Shell |
| Number of Flash Patterns | 25 |
| Light Color | White |
| Lighting Technology | LED |
| Overall Height | Not Applicable |
| Overall Length | Not Applicable |
| Current | 1.8 A @ 12V DC, 1.8 A @ 24V DC |
| Overall Diameter | 6-1/2 in |
| Electrical Connection | Deutsch Connector |
| Light Type | Perimeter Flashing Warning Light |
| Overall Depth | 7-1/8 in |
| Manufacturer Warranty | 5 yr |
| Light Pattern | Flashing |
| Mount Style | Surface |
| Operating Voltage | 12/24V DC |
| IP Rating | IP69K |
| Compatible Vehicle Type | Tow Trucks, Utility Vehicles |
| SAE Class Rating | SAE J845 Class 1 |
| Series | Spire(R) 100 |
| Installation Type | Permanent |
| Maximum Operating Temperature | 176 deg F |
| Minimum Operating Temperature | -40 deg F |
| Mount Type | Pipe |
| Installation Location | Roof |
| Wire Exit | Side |
| Includes Electrical Connection | Electrical Connection Included |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
