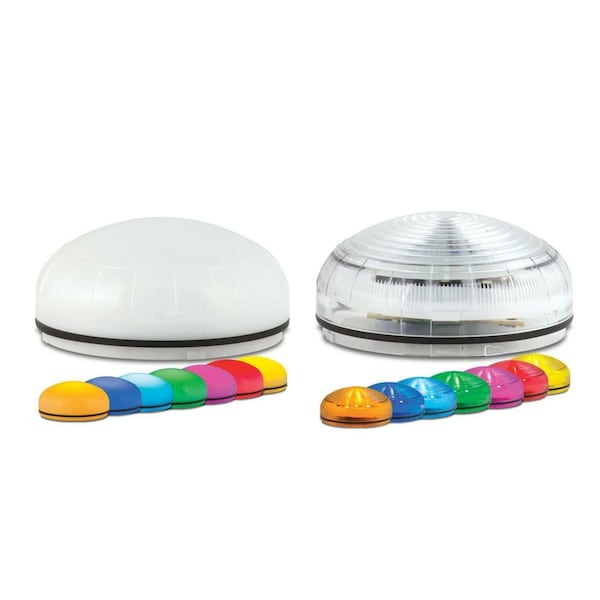

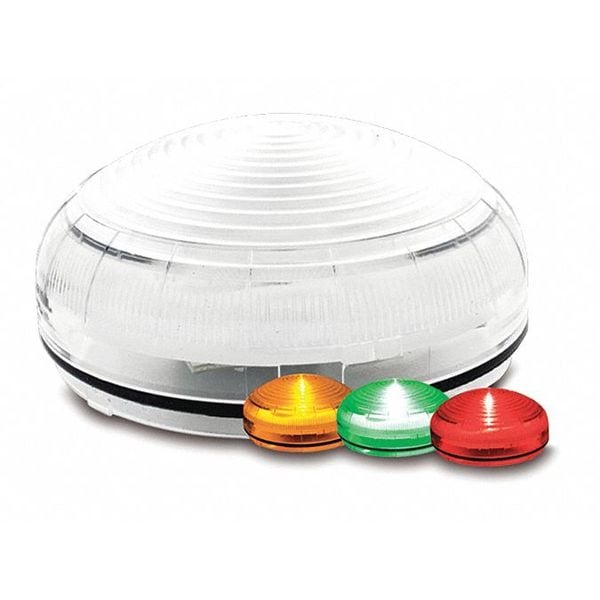

Status Indicator, Amber, Green, Red, LED
| Item | Indicator Light |
|---|---|
| Color | Red, Green, Amber |
| Lamp Type | LED |
| Power Source | Wire |
| Lamp Life | 50,000 hr |
| Lens Material | Polycarbonate |
| Flashes per Minute | 85, 120 |
| Height | 1-43/64 in |
| Housing Material | Polycarbonate |
| Standards | CE, cUL Listed, UKCA, UL Listed |
| Diameter | 3-29/32 in |
| Features | Developed with a Multichannel Technology, Engineered for Pedestrians, Docks, and Industrial Traffic Control, High Impact and UV Resistance |
| Operating Temp. | -22 to 122 deg F |
| Includes | SLM Top Module |
| Depth | 3-29/32 in |
| Rating | IP66, NEMA 4X |
| Voltage | 12 to 24V AC/DC or 120 to 240V AC |
| Mounting | Pipe, Deep, Dual, Shallow, Twin |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Width | 3-29/32 in |
| Light Output | 1500 Candela |
| Current Drawn | 55 to 310mA AC/DC |
| Lens Design | Fresnel |
| For Use With | Outdoor, Indoor |
| Product Type | Warning Light |
| Tower Light Color | Multicolor |
| Audible Alarm Type | Visual |
| Connection Type | Not Applicable |
| NEMA Rating | NEMA 4X |
| Overall Length | Not Applicable |
| Overall Width | Not Applicable |
| Brightness Selection | Fixed Brightness |
| Runtime | Not Applicable |
| Light Source | LED |
| For Location | Outdoor |
| Light Operating Mode | Flashing |
| Operating Temperature - Minimum | -40 deg F |
| Footprint Shape | Circle |
| Overall Diameter | 3-29/32 in |
| Control Protocol | Direct Wire |
| Overall Depth | 1-21/32 in |
| IO-Link Compatibility | Not Applicable |
| Light Intensity | 1,500 cd |
| Lens Color | Clear |
| Footprint Diameter | 3-7/8 in |
| Housing Color | Gray, Red |
| Footprint Width | Not Applicable |
| Footprint Length | Not Applicable |
| Includes Batteries | Not Applicable |
| For Hazardous Location | Not Applicable |
| Operating Current | 0.075 A @ 240V AC, 0.100 A @ 120V AC, 0.155 A @ 24V AC, 0.155 A @ 24V DC, 0.250 A @ 12V AC, 0.250 A @ 12V DC |
| Battery Size | Not Applicable |
| Mounting Mechanism | Not Applicable |
| Number of Batteries | Not Applicable |
| Mounting Style | Surface Mount |
| Operating Temperature - Maximum | 131 deg F |
| Requires Base | Base Required |
| Lamp Color | Not Applicable |
| IP Rating | IP69K, IP66 |
| Includes Mounting Hardware | Mounting Hardware Included |
| Lifespan | 100,000 hr |
| Country of Origin (subject to change) | Italy |
| Package Quantity | 1 |
