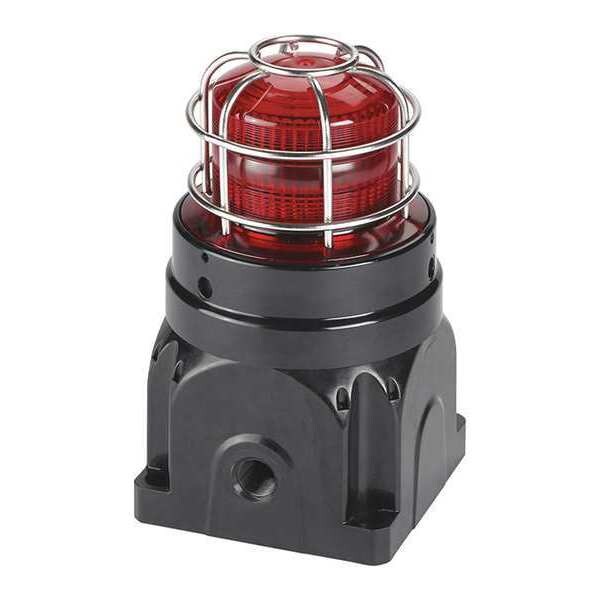

Strobe Light, Red, Xenon, 0.34A, Brckt Mnt
| Item | Strobe Light |
|---|---|
| Color | Red |
| Lamp Type | Xenon |
| Power Source | Wire |
| Lamp Life | 10,000 hr |
| Lens Material | Polycarbonate |
| Flashes per Minute | 60 |
| Height | 8-61/64 in |
| Housing Material | Glass Reinforced Polyester |
| Standards | ABS, ATEX Ex d IIC Ex de IIC and Ex tb IIIC, CE, CSFM Approved, cUL Listed, EAC, IECEx, INMETRO, UKEX Certified, UL Listed |
| Features | Corrosion Resistant, M20 Entries Standard |
| Light Output | 21 Joules |
| Depth | 7-29/64 in |
| Width | 7-29/64 in |
| Operating Temp. | -58 to 158 deg F |
| Mounting | U-Bracket |
| Current Drawn | 0.34A AC |
| Lens Design | Fresnel |
| Includes | Dome Guard |
| Rating | IP66 |
| Product Type | Strobe Light |
| NEMA Rating | NEMA 4X |
| Connection Type | TermiN/Al Block |
| Overall Length | 8-15/32 in |
| Includes Mounting Hardware | Mounting Hardware Included |
| Number of Batteries | Not Applicable |
| Operating Temperature - Maximum | 158 deg F |
| Brightness Selection | Fixed Brightness |
| Runtime | Not Applicable |
| Battery Size | Not Applicable |
| Footprint Length | 2-3/8 in |
| Lifespan | 10,000 hr |
| Lens Color | Red |
| Light Operating Mode | Strobe |
| Mounting Style | Flush Mount |
| Control Protocol | User Operated |
| Requires Base | Base Not Required |
| Operating Temperature - Minimum | -67 deg F |
| Overall Diameter | Not Applicable |
| Overall Width | 7-1/2 in |
| Housing Color | Black |
| Overall Depth | 8-15/16 in |
| Footprint Width | 1-1/4 in |
| Light Intensity | 500 cd |
| Footprint Diameter | Not Applicable |
| Lens Shape | Dome |
| IP Rating | IP69K, IP66, IP67 |
| For Location | Not Applicable |
| For Hazardous Location | Class I, Division 2, Class II, Division 2 |
| Mounting Mechanism | Bracket |
| Lamp Color | Not Applicable |
| Includes Batteries | Not Applicable |
| Light Source | Xenon |
| IO-Link Compatibility | Not Applicable |
| Operating Current | 0.190 A @ 220 to 240V AC |
| Footprint Shape | Rectangle |
| Operating Voltage | 220 to 240V AC |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
