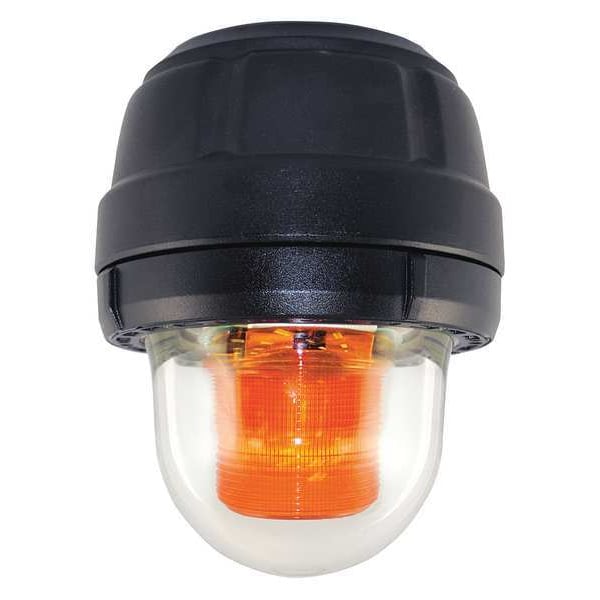

Warning Light, Amber, Strobe Tube, 120VAC
| Item | Warning Light |
|---|---|
| Color | Amber |
| Lamp Type | Strobe Tube |
| Power Source | Wire |
| Lamp Life | 10,000 hr |
| Lens Material | Polycarbonate |
| Flashes per Minute | 80 |
| Height | 14-9/16 in |
| Housing Material | Cast Aluminum |
| Standards | CSFM Approved, cUL Listed, cULus Listed, Marine Rated, UL Listed |
| Diameter | 8-13/16 in |
| Features | Conformal Coated PCBA |
| Current Drawn | 1.14A AC |
| Operating Temp. | -67 to 150 deg F |
| Mounting | Wall, Ceiling, Pendant |
| Width | 8-13/16 in |
| Lens Design | Fresnel |
| Rating | NEMA 4X |
| Light Output | 850 Candela |
| Includes | 27XST Explosion-Proof Strobe Light Dome Up |
| For Use With | Oil Rig, Mine, Chemical Plant, Refinery |
| NEMA Rating | NEMA 4X |
| Voltage | 120 V AC |
| Audible Alarm Type | Visual |
| Connection Type | Not Applicable |
| Product Type | Strobe Light |
| Lens Color | Amber |
| Overall Width | Not Applicable |
| Overall Length | Not Applicable |
| Light Intensity | 850 cd |
| Operating Current | 1.140 A @ 120V AC |
| Lens Shape | Dome |
| IP Rating | IP69K, IP66 |
| Runtime | Not Applicable |
| Footprint Width | Not Applicable |
| Operating Temperature - Maximum | 150 deg F |
| Footprint Length | Not Applicable |
| Light Source | Not Applicable |
| Footprint Shape | Circle |
| Light Operating Mode | Strobe |
| For Hazardous Location | Class I, Division 1, Class I, Division 2, Class II, Division 1 |
| Overall Diameter | 8-13/16 in |
| Number of Batteries | Not Applicable |
| Footprint Diameter | 8-13/16 in |
| Mounting Style | Not Applicable |
| Housing Color | Black |
| For Location | Not Applicable |
| Operating Temperature - Minimum | -67 deg F |
| Brightness Selection | Fixed Brightness |
| IO-Link Compatibility | Not Applicable |
| Battery Size | Not Applicable |
| Overall Depth | 11-3/8 in |
| Lamp Color | Not Applicable |
| Requires Base | Base Required |
| Mounting Mechanism | Not Applicable |
| Lifespan | 10,000 hr |
| Control Protocol | Direct Wire |
| Includes Batteries | Not Applicable |
| Includes Mounting Hardware | No Mounting Hardware |
| Operating Voltage | 120V AC |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
