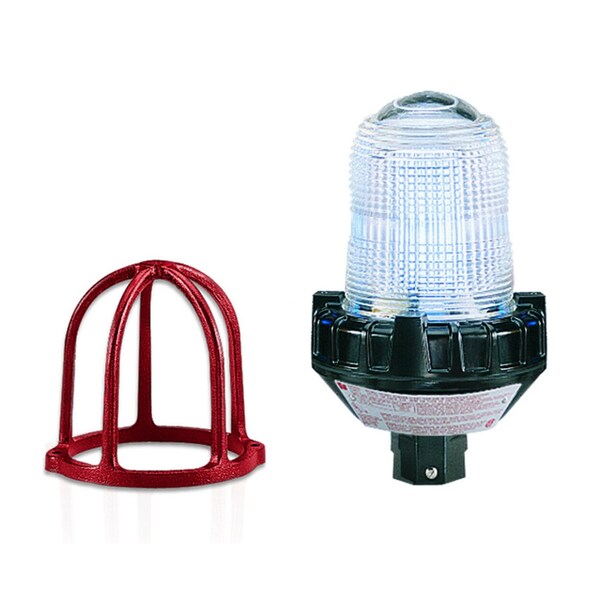

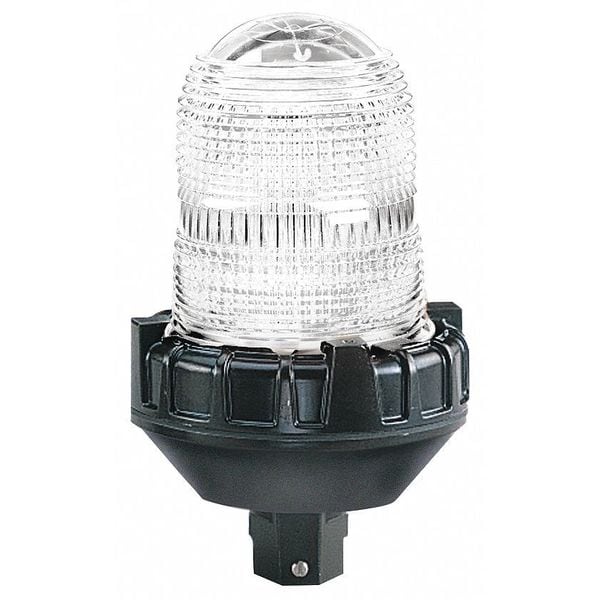

Warning Light, Clear, Strobe Tube
| Item | Strobe Light |
|---|---|
| Color | Clear |
| Lamp Type | Strobe Tube |
| Power Source | Wire |
| Lamp Life | 10,000 hr |
| Lens Material | Glass |
| Flashes per Minute | 80 |
| Height | 9-1/4 in |
| Housing Material | Aluminum |
| Standards | cULus Listed, Marine Rated, UL Listed |
| Diameter | 5-1/2 in |
| Features | Conformal Coated PCBA |
| Lens Design | Fresnel |
| Width | 5-1/2 in |
| Depth | 5-1/2 in |
| Rating | IP66, Marine, NEMA 4X |
| Mounting | Pipe |
| Operating Temp. | -67 to 150 deg F |
| Green Environmental Attribute | Does Not Contain Methylene Chloride |
| Current Drawn | 0.483A to 0.226A DC |
| Voltage | 24V DC |
| Includes | Dome Guard |
| Light Output | 25 Candela |
| For Use With | Plant Evacuation, Forklift, Security, Fire Alarm, Suppression Supervised Control Panel, Marine |
| Product Type | Warning Light |
| Connection Type | Not Applicable |
| Audible Alarm Type | Visual |
| NEMA Rating | NEMA 4X |
| Overall Length | Not Applicable |
| Overall Width | Not Applicable |
| Battery Size | Not Applicable |
| Includes Mounting Hardware | No Mounting Hardware |
| Footprint Diameter | 5-1/2 in |
| Brightness Selection | Fixed Brightness |
| IP Rating | IP69K, IP66 |
| Mounting Mechanism | Not Applicable |
| Light Intensity | 25 cd |
| Footprint Length | Not Applicable |
| For Hazardous Location | Class I, Division 2, Class II, Division 1 |
| Operating Temperature - Minimum | -67 deg F |
| Lens Color | Clear |
| Mounting Style | Surface Mount |
| Requires Base | Base Not Required |
| Overall Depth | 9-1/4 in |
| IO-Link Compatibility | Not Applicable |
| Number of Batteries | Not Applicable |
| Housing Color | Black |
| Operating Current | 0.226 to 0.483 A @ 24V DC |
| Includes Batteries | Not Applicable |
| Footprint Width | Not Applicable |
| Lens Shape | Dome |
| Lifespan | 10,000 hr |
| Operating Temperature - Maximum | 150 deg F |
| Control Protocol | Direct Wire |
| Light Source | Not Applicable |
| Runtime | Not Applicable |
| Light Operating Mode | Strobe |
| Overall Diameter | 5-1/2 in |
| Footprint Shape | Circle |
| For Location | Not Applicable |
| Lamp Color | Not Applicable |
| Operating Voltage | 24V DC |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
