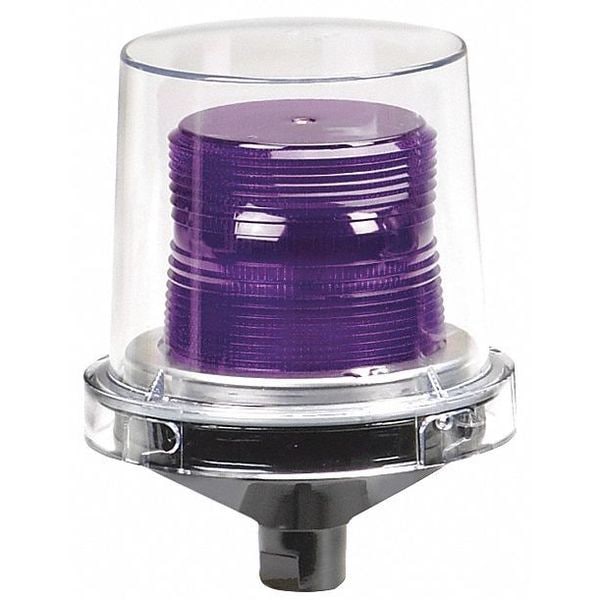

Warning Light, Magenta, Strobe Tube
| Item | Strobe Light |
|---|---|
| Color | Magenta |
| Lamp Type | Strobe Tube |
| Power Source | Wire |
| Lamp Life | 10,000 hr |
| Lens Material | Polycarbonate |
| Flashes per Minute | 80 |
| Height | 7-1/2 in |
| Housing Material | Aluminum |
| Standards | CSA Certified, CSFM Approved, cUL Listed, cULus Listed, UL Listed |
| Diameter | 5-1/2 in |
| Features | Conformal Coated PCBA |
| Green Environmental Attribute | Does Not Contain Methylene Chloride |
| Rating | IP66, NEMA 4X |
| Lens Design | Fresnel |
| Depth | 5-1/2 in |
| Light Output | 580,000 Candela |
| Mounting | 1/2 in NPT Pipe or Surface |
| Voltage | 24V DC |
| Operating Temp. | -40 to 104 deg F |
| Width | 5-1/2 in |
| Current Drawn | 0.7A DC |
| For Use With | Chemical Plant, Security, Food Processing |
| Product Type | Strobe Light |
| Audible Alarm Type | Visual |
| Connection Type | Wire |
| NEMA Rating | NEMA 4X |
| Overall Width | Not Applicable |
| Overall Length | Not Applicable |
| Lens Shape | Dome |
| Mounting Style | Surface Mount |
| Operating Current | 0.700 A @ 24V DC |
| Includes Mounting Hardware | No Mounting Hardware |
| Footprint Shape | Circle |
| Overall Depth | 7-1/2 in |
| Battery Size | Not Applicable |
| Footprint Width | Not Applicable |
| Runtime | Not Applicable |
| Operating Temperature - Maximum | 104 deg F |
| IP Rating | IP69K, IP66 |
| Lifespan | 10,000 hr |
| Light Operating Mode | Strobe |
| Light Source | Not Applicable |
| Number of Batteries | Not Applicable |
| Overall Diameter | 5-1/2 in |
| Brightness Selection | Fixed Brightness |
| Lens Color | Magenta |
| Includes Batteries | Not Applicable |
| For Location | Not Applicable |
| Requires Base | Base Required |
| For Hazardous Location | Class I, Division 2, Class II, Division 2 |
| Control Protocol | Direct Wire |
| IO-Link Compatibility | Not Applicable |
| Footprint Diameter | 5-1/2 in |
| Mounting Mechanism | Not Applicable |
| Housing Color | Black |
| Lamp Color | Not Applicable |
| Footprint Length | Not Applicable |
| Operating Temperature - Minimum | -40 deg F |
| Light Intensity | 580,000 cd |
| Operating Voltage | 24V DC |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
