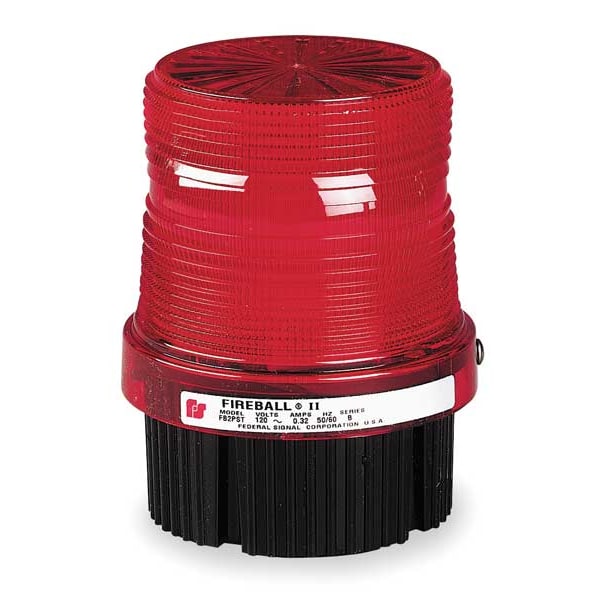

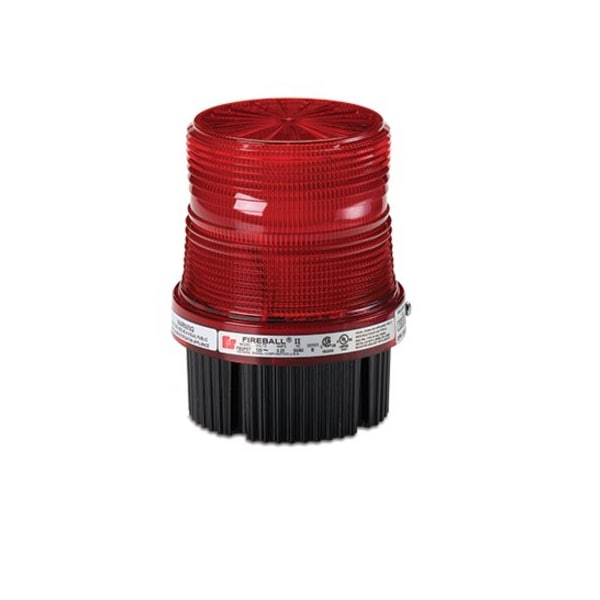

Warning Light, Strobe Tube, Red, 120VAC
| Item | Warning Light |
|---|---|
| Color | Red |
| Lamp Type | Strobe Tube |
| Power Source | Wire |
| Lamp Life | 10,000 hr |
| Lens Material | Polycarbonate |
| Flashes per Minute | 80 |
| Height | 5-1/4 in |
| Housing Material | Die-Cast Zinc Alloy |
| Standards | CSA Certified, CSFM Approved, cUL Listed, cULus Listed, UL Listed |
| Diameter | 4-1/8 in |
| Features | Conformal Coated PCBA |
| Mounting | Surface, 1/2 in NPT |
| Operating Temp. | -31 to 150 deg F |
| Voltage | 120V AC |
| Light Output | 300 Candela |
| Rating | NEMA 4X |
| Lens Design | Fresnel |
| Current Drawn | 0.25A AC |
| For Use With | Factory, Outdoor, Industrial, Indoor, Security, Vehicle, Fire, Automation |
| Product Type | Warning Light |
| Audible Alarm Type | Visual |
| NEMA Rating | NEMA 4X |
| Connection Type | Not Applicable |
| Overall Length | Not Applicable |
| Overall Width | Not Applicable |
| Footprint Shape | Circle |
| Light Intensity | 300 cd |
| Footprint Diameter | 4-1/8 in |
| Footprint Length | Not Applicable |
| For Hazardous Location | Not Applicable |
| Includes Mounting Hardware | No Mounting Hardware |
| Runtime | Not Applicable |
| Control Protocol | Direct Wire |
| Housing Color | Black |
| Number of Batteries | Not Applicable |
| Overall Depth | 5-1/4 in |
| Lamp Color | Not Applicable |
| Operating Current | 0.700 A @ 120V AC |
| IO-Link Compatibility | Not Applicable |
| Water Resistance | Water Resistant |
| Lifespan | 10,000 hr |
| Light Operating Mode | Strobe |
| Vibration | No Vibration |
| Requires Base | Base Not Required |
| Operating Temperature - Minimum | -31 deg F |
| Lens Color | Red |
| Mounting Mechanism | Not Applicable |
| Battery Size | Not Applicable |
| Operating Temperature - Maximum | 150 deg F |
| For Location | Indoor, Outdoor |
| Mounting Style | Surface Mount |
| IP Rating | IP69K, IP66 |
| Brightness Selection | Fixed Brightness |
| Footprint Width | Not Applicable |
| Includes Batteries | Not Applicable |
| Overall Diameter | 4-3/32 in |
| Light Source | Not Applicable |
| Lens Shape | Dome |
| Operating Voltage | 120V AC |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
