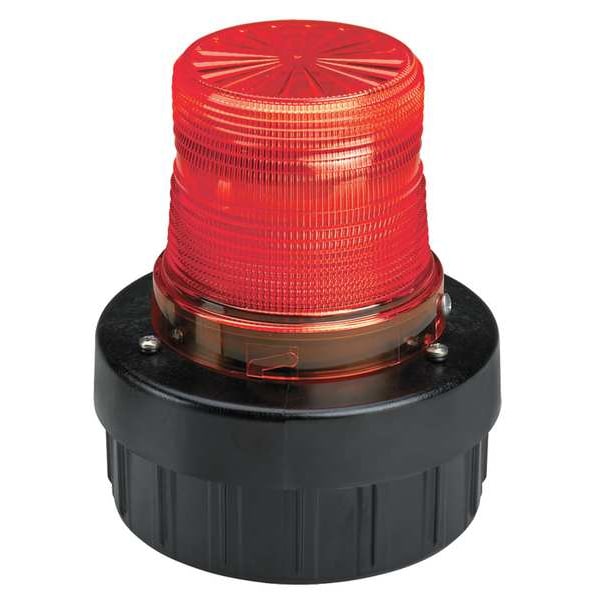

Warning Light w/Sound, LED, Red, 120VAC
| Item | Warning Light |
|---|---|
| Color | Red |
| Lamp Type | LED |
| Power Source | Wire |
| Lamp Life | 60,000 hr |
| Lens Material | Fresnel Dome |
| Flashes per Minute | 60, 75 |
| Height | 6.48 in |
| Housing Material | Polycarbonate |
| Standards | cUL Listed, cULus Listed, UL Listed |
| Diameter | 5.76 in |
| Features | Internal Buzzer Produces 85 dBA at 10 ft (95 dBA at 1m), PLC Compatible, Twist-Off Lens |
| Includes | Lens Gasket, Surface Mount Gasket |
| Width | 5.76 in |
| Operating Temp. | -31 to 150 deg F |
| Current Drawn | .03A AC |
| Lens Design | Fresnel |
| Mounting | Surface |
| For Use With | Signaling System |
| Product Type | Warning Light |
| Voltage | 120 V AC |
| Audible Alarm Type | Visual, Audible |
| Decibels | 85 |
| Connection Type | Wire Leads |
| NEMA Rating | NEMA 3R |
| Lens Color | Red |
| Overall Length | Not Applicable |
| Overall Width | Not Applicable |
| Footprint Diameter | 5-3/4 in |
| Overall Depth | 6-15/32 in |
| Light Intensity | 125 cd |
| For Location | Not Applicable |
| Mounting Mechanism | NPT |
| Light Operating Mode | Flashing |
| Operating Temperature - Minimum | -31 deg F |
| Requires Base | Base Not Required |
| Footprint Width | Not Applicable |
| Footprint Length | Not Applicable |
| Light Source | LED |
| Lens Shape | Dome |
| For Hazardous Location | Not Applicable |
| Includes Batteries | Not Applicable |
| Lifespan | 50,000 hr |
| Battery Size | Not Applicable |
| Brightness Selection | Fixed Brightness |
| Mounting Style | Surface Mount |
| Footprint Shape | Circle |
| Operating Current | 0.030 A @ 120V AC |
| Control Protocol | Direct Wire |
| IO-Link Compatibility | Not Applicable |
| Lamp Color | Not Applicable |
| Overall Diameter | 5-3/4 in |
| Water Resistance | Water Resistant |
| Includes Mounting Hardware | No Mounting Hardware |
| Operating Temperature - Maximum | 150 deg F |
| Housing Color | Black |
| IP Rating | Not Applicable |
| Number of Batteries | Not Applicable |
| Runtime | Not Applicable |
| Operating Voltage | 120V AC |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
