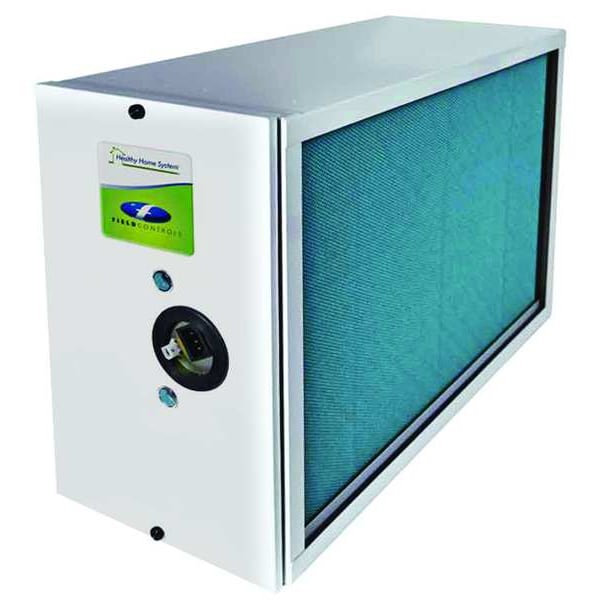

Air Treatment System, 3 Stage, 1200 CFM
| Item | Air Treatment System |
|---|---|
| Color | White |
| Type | 3-Stage |
| Width | 21 to 30 in |
| Voltage | 120 V AC |
| Height | 11 to 20 in |
| Watts | 44.8 |
| Finish | Powder Coated |
| Air Flow (CFM) | 1200 |
| Cord Length (Ft.) | 7 |
| Width (In.) | 10-1/4 |
| Agency Compliance | CSA, UL |
| Filter Rating (Microns) | 0.3 |
| Height (In.) | 17 |
| Hz | 50/60 |
| Mount | Duct |
| Depth (In.) | 25 |
| Phase | 1 |
| Includes | UV Lamps |
| Amps AC | 0.38 A |
| MERV | 11 |
| Overall Dimensions - H x W x D | 17 in x 10-1/4 in x 25 in |
| Overall Depth | 10 in |
| Overall Width | 25 in |
| Standards | CSA, UL Listed |
| Filter Efficiency | 92.3% |
| Overall Height | 17 in |
| For Duct Cut-Out Width | 12 in |
| Duct Insertion Length | 25 in |
| Housing Finish | Powder Coated |
| Air Cleaning Method | Particulate Filtration, Ultraviolet Light, Photocatalytic Oxidation |
| Number of Cleaning Stages | 3 |
| Primary Filter Type | Pleated |
| For Duct Cut-Out Height | 16 in |
| Amperage | 0.4 A |
| Air Cleaning Technology | Particulate Filtration, Ultraviolet Light, Photocatalytic Oxidation |
| Install Angle | Standard Angle |
| UV-C Bulb Rated Life | 2 yr |
| Photocatalyst Material | Titanium |
| Filters Down To | 0.3 micron |
| Filters Out | Bacteria, Dander, Dust, Fungi, Mold, Odors, Pollen, Smoke, Viruses, VOCs |
| UV-C Bulb Wattage | 2 W |
| Frequency | 50 Hz, 60 Hz |
| Maximum Air Flow Capacity | 1,200 cfm |
| Compatible HVAC System Size | 1.5 to 5 tons |
| Maximum Coverage Area | 2,000 sq ft |
| UV-C Bulb Change Reminder | Yes |
| Static Pressure Drop | 0.30 in wc at 1,200 cfm |
| Wattage | 44.8 W |
| Number of UV-C Bulbs | 2 |
| Filters Included | Pleated (Primary) |
| Primary Filter Performance Rating | MERV 13 |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
