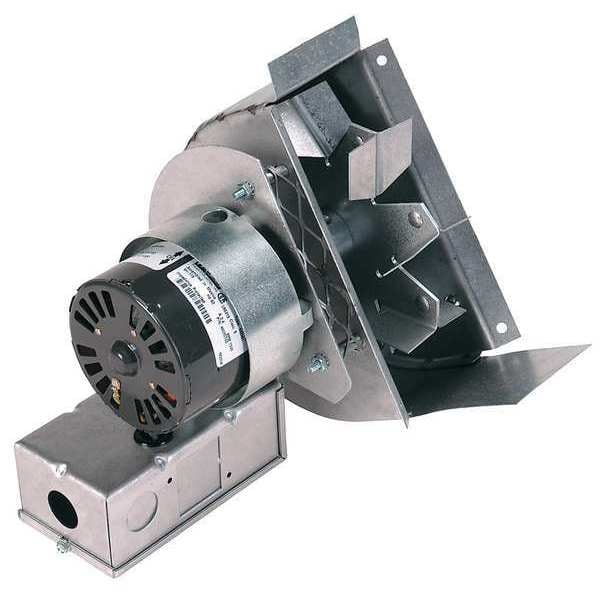

Draft Inducer, 115, Galvanized Steel, 9 3/16 in W, 6 7/16 in H, 8 to 12 Inlet and Outlet Dia.
| Inlet and Outlet Dia. (In.) | 8 to 12 |
|---|---|
| Item | Draft Inducer |
| Type | Inducer |
| Voltage | 115 V |
| Depth (In.) | 9-7/16 |
| Cut Out Required | 8-3/8 in |
| Construction Material | Galvanized Steel |
| Amps | 1.1 |
| Includes | DI/CK Adapter Kit, Pressure Sensing Tube |
| Remarks | Used to Exhaust Heating Appliances |
| Height (In.) | 6-7/16 |
| Vent Pipe Dia. (In.) | 5 to 8 |
| Agency Compliance | ETL |
| Width (In.) | 9-3/16 |
| Application | Furnaces, Water Heaters, Boilers |
| Watts | 78 |
| BtuH Input | 279,000 to 353,000 |
| Duct Temp. Deg. (F) | 650 Degrees F |
| CFM @ 0.000-In. SP | 190 210 225 240 |
| Outlet Width | Not Applicable |
| Maximum Vent Pipe Diameter | 8 in |
| Inlet Diameter | 8 in |
| Maximum Static Pressure | 0 in wc |
| Maximum Motor Speed | 1,550 rpm |
| Phase | 1 |
| Airflow @ 0.000 in SP | 0.786 cfm |
| Wheel Type | Radial |
| Housing Material Finish | Galvanized |
| Maximum Fan Speed | 1,550 rpm |
| Outlet Height | Not Applicable |
| For Appliance Type | Oil or Gas-Fired Furnaces, Water Heaters, Boilers |
| For Pipe Slot Height | 5-1/8 in |
| Motor Type | Permanent Split Capacitor |
| Nameplate Voltage | 115V AC |
| Outlet Diameter | 12 in |
| Overall Height | 9-3/8 in |
| Wheel Diameter | 8-7/8 in |
| Power Consumption | 78 W |
| Manufacturer Warranty Length | 18 mo |
| Overall Width | 9-1/8 in |
| Housing Material | Steel |
| Maximum Heater BTU Input for Oil Appliance | 412,000 BtuH |
| For Vent Pipe Diameter | 8 in |
| Minimum Vent Pipe Diameter | 5 in |
| Current | 1.1 A |
| Frequency | 60 Hz |
| For Pipe Slot Width | 8-1/2 in |
| Standards | cETLus Listed |
| Outlet Shape | Round |
| Overall Depth | 8-3/8 in |
| Wheel Material | Steel |
| Compatible with Brand | Universal |
| Maximum Heater BTU Input for Gas Appliance | 353,000 BtuH |
| For Fuel Type | Natural Gas, Oil, Coal |
| Blower Type | Induced Draft Blower |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
