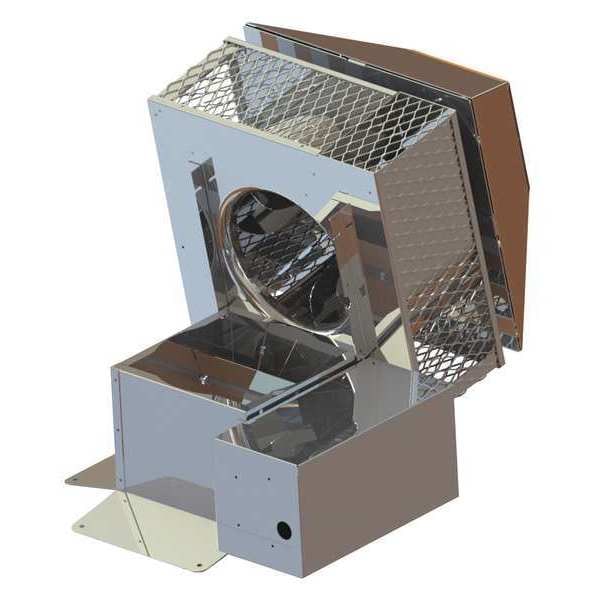

Draft Inducer, 115, Stainless Steel, 16 in W, 14 3/4 in H, Na" Inlet and Outlet Dia.
| Inlet and Outlet Dia. (In.) | Na" |
|---|---|
| Item | Draft Inducer |
| Type | Inducer |
| Voltage | 115 V |
| Construction Material | Stainless Steel |
| Amps | 0.81 |
| Includes | Rain Shield |
| Remarks | Used for Fireplaces or Stoves Only |
| Height (In.) | 14-3/4 |
| Vent Pipe Dia. (In.) | 7-15/16 |
| Width (In.) | 16 |
| Application | Furnaces |
| Watts | 57 |
| Duct Temp. Deg. (F) | 900 Degrees F |
| RPM | 1,550 |
| Current | 0.81 A |
| Nameplate Voltage | 115V AC |
| Motor Type | Permanent Split Capacitor |
| Outlet Diameter | 8 in |
| Overall Width | 16 in |
| Maximum Motor Speed | 1,550 rpm |
| Outlet Shape | Square |
| Wheel Material | Steel |
| Maximum Vent Pipe Diameter | 8 in |
| Power Consumption | 57 W |
| Frequency | 60 Hz |
| For Fuel Type | Natural Gas, Solid Fuel Fireplace |
| Compatible with Brand | Universal |
| Overall Depth | 16 in |
| Overall Height | 14-3/4 in |
| Maximum Static Pressure | 0.25 in wc |
| Inlet Diameter | 7-7/8 in |
| Maximum Fan Speed | 1,550 rpm |
| Phase | 1 |
| Maximum Inlet Air Temperature | 1,300 deg F |
| Outlet Height | 8 in |
| Wheel Type | Airfoil |
| For Vent Pipe Diameter | 8 in |
| Wheel Diameter | 6-7/8 in |
| Housing Material | Stainless Steel |
| Minimum Vent Pipe Diameter | 8 in |
| Manufacturer Warranty Length | 18 mo |
| Airflow @ 0.000 in SP | 0.017 cfm |
| Outlet Width | 8 in |
| Maximum Hearth Opening | 7 sq ft |
| Blower Type | Induced Draft Blower |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
