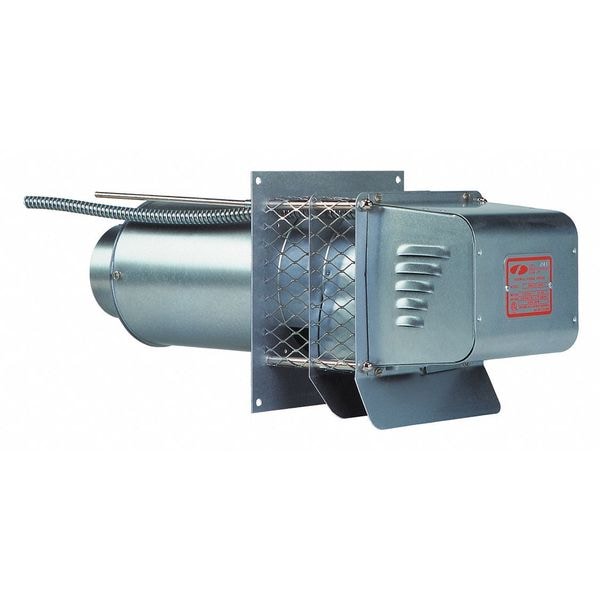

Power Venter, 115, Aluminum Steel, 12 in W, 12 1/4 in H, 6 Inlet and Outlet Dia.
| Inlet and Outlet Dia. (In.) | 6 |
|---|---|
| Item | Power Venter |
| Type | Power Venter |
| Voltage | 115 V |
| Depth (In.) | 9-7/32 |
| Cut Out Required | 9-1/4 in |
| Construction Material | Aluminum Steel |
| Amps | 2.1 |
| Includes | Two Piece Backing Plate |
| Remarks | Used to Exhaust Heating Appliances |
| Height (In.) | 12-1/4 |
| Vent Pipe Dia. (In.) | 6 |
| Agency Compliance | ETL |
| Width (In.) | 12 |
| Application | Furnaces |
| Watts | 228 |
| BtuH Input | 416,000 |
| Duct Temp. Deg. (F) | 550 Degrees F |
| Max. Pipe Length 300 | 100 |
| Overall Width | 12 in |
| Wheel Material | Steel |
| Phase | 1 |
| For Fuel Type | Natural Gas, Oil, LP |
| Outlet Width | 2-1/8 in |
| Manufacturer Warranty Length | 5 yr |
| Overall Height | 22-1/2 in |
| Maximum Fan Speed | 3,100 rpm |
| Current | 2.1 A |
| Airflow @ 0.000 in SP | 0.006 cfm |
| Maximum Motor Speed | 3,100 rpm |
| Overall Depth | 12 in |
| Wheel Diameter | 5-1/4 in |
| Minimum Vent Pipe Diameter | 5 in |
| Standards | UL Listed |
| Maximum Static Pressure | 1.625 in wc |
| For Appliance Type | Gas or Oil Furnaces, Boilers, Water Heaters |
| Cutout Size | 9 1/4 in |
| Power Consumption | 228 W |
| Wheel Type | Forward-Curved |
| Frequency | 60 Hz |
| Bore Diameter | 6 in |
| Maximum Vent Pipe Diameter | 6 in |
| Maximum Inlet Air Temperature | 550 deg F |
| Nameplate Voltage | 115V AC |
| For Vent Pipe Diameter | 7 in |
| Maximum Heater BTU Input for Oil Appliance | 364,000 BtuH |
| Maximum Heater BTU Input for Gas Appliance | 416,000 BtuH |
| Inlet Diameter | 6 in |
| Includes Mounting Hardware | Yes |
| Outlet Diameter | 6 in |
| Compatible with Brand | Universal |
| Housing Material | Stainless Steel |
| Outlet Shape | Rectangular |
| Outlet Height | 2-7/8 in |
| Motor Type | Permanent Split Capacitor |
| Blower Type | Sidewall Power Venter |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
