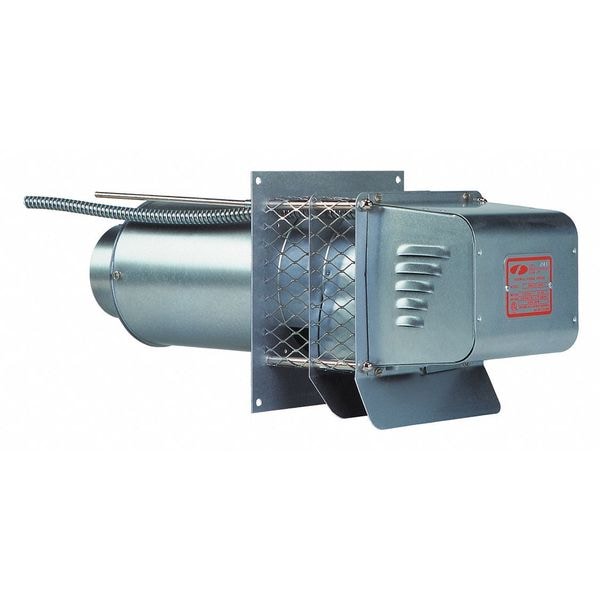

Power Venter, 115, Aluminum Steel, 9 in W, 9 in H, 4 Inlet and Outlet Dia.
| Inlet and Outlet Dia. (In.) | 4 |
|---|---|
| Item | Power Venter |
| Type | Power Venter |
| Voltage | 115 V |
| Depth (In.) | 9-7/32 |
| Cut Out Required | 7-1/4 in |
| Construction Material | Aluminum Steel |
| Amps | 1.7 |
| Includes | Two Piece Backing Plate |
| Remarks | Used to Exhaust Heating Appliances |
| Height (In.) | 9 |
| Vent Pipe Dia. (In.) | 4 |
| Agency Compliance | ETL |
| Width (In.) | 9 |
| Application | Furnaces |
| Watts | 138 |
| BtuH Input | 170,000 |
| Duct Temp. Deg. (F) | 550 Degrees F |
| Max. Pipe Length 300 | 100 |
| Power Consumption | 138 W |
| Outlet Diameter | 4 in |
| Motor Type | Permanent Split Capacitor |
| Airflow @ 0.000 in SP | 0.002 cfm |
| Nameplate Voltage | 115V AC |
| Current | 1.7 A |
| Frequency | 60 Hz |
| Cutout Size | 7 1/4 in |
| Maximum Heater BTU Input for Gas Appliance | 170,000 BtuH |
| Overall Depth | 9 in |
| Phase | 1 |
| For Appliance Type | Gas or Oil Furnaces, Boilers, Water Heaters |
| Maximum Static Pressure | 1 in wc |
| Wheel Diameter | 4-1/8 in |
| Outlet Height | 2-1/8 in |
| Housing Material | Stainless Steel |
| Manufacturer Warranty Length | 5 yr |
| For Vent Pipe Diameter | 5 in |
| For Fuel Type | Natural Gas, Oil, LP |
| Bore Diameter | 4 in |
| Wheel Material | Steel |
| Outlet Shape | Rectangular |
| Maximum Heater BTU Input for Oil Appliance | 151,000 BtuH |
| Compatible with Brand | Universal |
| Minimum Vent Pipe Diameter | 3 in |
| Maximum Fan Speed | 3,000 rpm |
| Overall Width | 9 in |
| Includes Mounting Hardware | Yes |
| Inlet Diameter | 4 in |
| Maximum Vent Pipe Diameter | 4 in |
| Wheel Type | Forward-Curved |
| Overall Height | 21-1/4 in |
| Standards | UL Listed |
| Outlet Width | 2-1/8 in |
| Maximum Motor Speed | 3,000 rpm |
| Maximum Inlet Air Temperature | 550 deg F |
| Blower Type | Sidewall Power Venter |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
