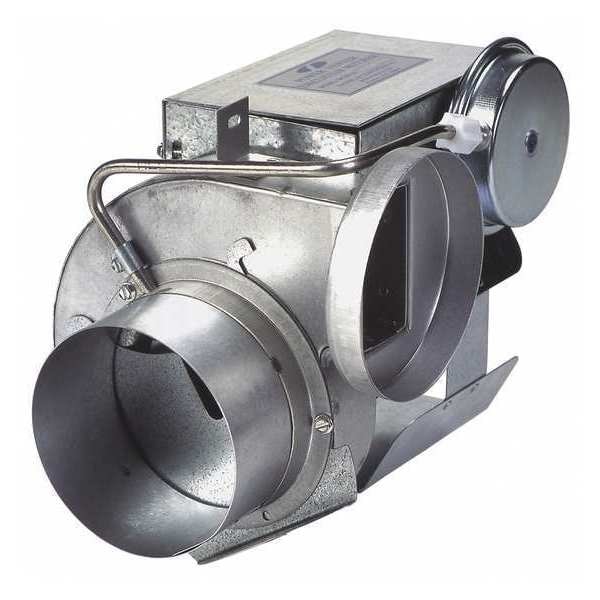

Power Venter, 115, Galvanized Steel, 9 3/4 in W, 8 3/4 in H, 5 Inlet and Outlet Dia.
| Inlet and Outlet Dia. (In.) | 5 |
|---|---|
| Item | Power Venter |
| Type | Power Venter |
| Voltage | 115 V |
| Depth (In.) | 8-1/2 |
| Construction Material | Galvanized Steel |
| Amps | 1.5 |
| Includes | 4 in MG-1 Draft Control, 4 in Vent Hood, PVG Power Venter |
| Remarks | Used to Exhaust Heating Appliances |
| Height (In.) | 8-3/4 |
| Vent Pipe Dia. (In.) | 5 |
| Agency Compliance | ETL |
| Width (In.) | 9-3/4 |
| Application | Furnaces |
| Watts | 167 |
| Duct Temp. Deg. (F) | 550 Degrees F |
| Max. Pipe Length 300 | 4 |
| BtuH Input | 610,000 |
| Minimum Vent Pipe Diameter | 5 in |
| For Vent Pipe Diameter | 5 in |
| For Fuel Type | Natural Gas, LP |
| For Appliance Type | Boilers, Furnaces, Water Heaters |
| Outlet Diameter | 5 in |
| Wheel Type | Forward-Curved |
| Nameplate Voltage | 115V AC |
| Inlet Diameter | 5 in |
| Maximum Motor Speed | 3,000 rpm |
| Overall Height | 8-3/4 in |
| Overall Depth | 8-1/2 in |
| Maximum Vent Pipe Diameter | 5 in |
| Outlet Shape | Rectangular |
| Maximum Inlet Air Temperature | 550 deg F |
| Minimum Heat Input | 145,000 BtuH |
| Motor Type | Permanent Split Capacitor |
| Wheel Material | Steel |
| Manufacturer Warranty Length | 18 mo |
| Maximum Static Pressure | 1.375 in wc |
| Overall Width | 9-3/4 in |
| Maximum Fan Speed | 3,000 rpm |
| Outlet Height | 3-1/4 in |
| Compatible with Brand | Tjernlund |
| Housing Material | Steel |
| Maximum Heat Input | 400,000 BtuH |
| Phase | 1 |
| Maximum Heater BTU Input for Oil Appliance | Not Applicable |
| Housing Material Finish | Galvanized |
| Frequency | 60 Hz |
| Outlet Width | 3-5/8 in |
| Wheel Diameter | 4-1/4 in |
| Replacement For Manufacturer Model Number | HS1, HST-1, HSUL-1 |
| Airflow @ 0.000 in SP | 1.359 cfm |
| Standards | cETLus Listed |
| Market | Residential |
| Maximum Heater BTU Input for Gas Appliance | 610,000 BtuH |
| Power Consumption | 167 W |
| Current | 1.5 A |
| Blower Type | Sidewall Power Venter |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
