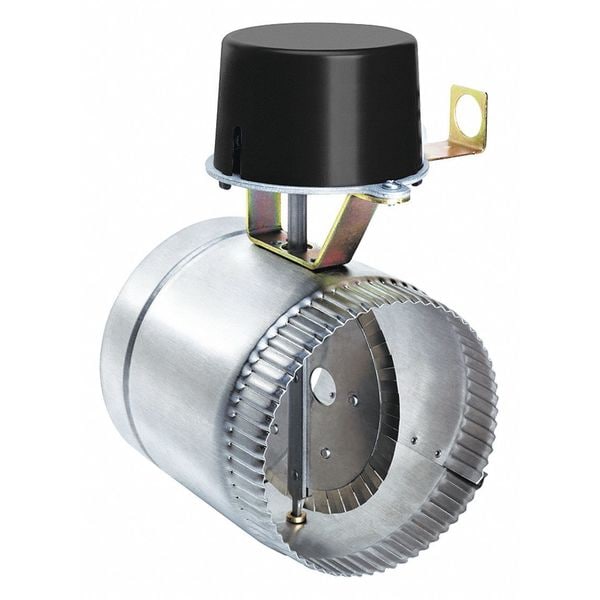

Vent Damper, 6-1/16 in L x 8-7/8 in H, SS
| Item | SS Motrzd Vent Dampr,6.1"L 8.9"H 6.1"W |
|---|---|
| Pipe Size | 4 in |
| Material | Stainless Steel |
| Voltage | 24 V |
| Height | 8-7/8 in |
| Length | 6-1/16 in |
| Application | Gas Boiler |
| Time to Open | 15 sec |
| Time to Close | 15 sec |
| Control Clearance | 15/16 in |
| Includes | Not Applicable |
| Frame Material | Stainless Steel |
| Pressure Drop @ 1000 fpm (AMCA 5.2) | Not Applicable |
| Flange Width | Not Applicable |
| Frame Less Flange | Not Applicable |
| Free Area | Not Applicable |
| Jamb Seal Material | Not Applicable |
| Fusible Link Temperature | Not Applicable |
| Blade Orientation | Not Applicable |
| Rough Opening Width | Not Applicable |
| Closure Velocity Rating | Not Applicable |
| Rough Opening Shape | Not Applicable |
| Airflow Direction | Vertical |
| Series | GVD |
| Overall Width | 6-1/8 in |
| Flange Type | Not Applicable |
| Blade Type | Flat Blade |
| Blade Seal Material | Stainless Steel |
| Closure Pressure Rating | Not Applicable |
| Blade Material Thickness | 18 ga |
| ACMA Leakage Class | Not Applicable |
| Maximum Temperature Rating | 221 Degrees F |
| Maximum Air Pressure | Not Applicable |
| Overall Diameter | 4 in |
| Damper Application | Vent |
| Counterbalanced | Not Applicable |
| Rough Opening Length | Not Applicable |
| Mounting Position | Not Applicable |
| Frame Material Thickness | 0.024 in |
| Overall Height | 8-7/8 in |
| Switch Action | Normally Open |
| Maximum Air Velocity | Not Applicable |
| Blade Material | Stainless Steel |
| Overall Length | 6-1/8 in |
| Rough Opening Diameter | Not Applicable |
| For Duct Shape | Not Applicable |
| Damper Type | Dynamic |
| For Nominal Duct Diameter | 4 in |
| Number of Panels | Not Applicable |
| Nameplate Voltage | 24 V AC |
| Includes Motor | Yes |
| Frequency | 60 Hz |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
