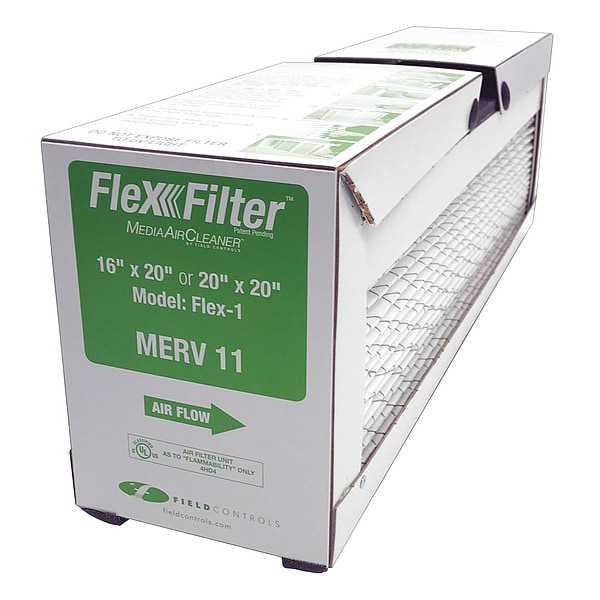

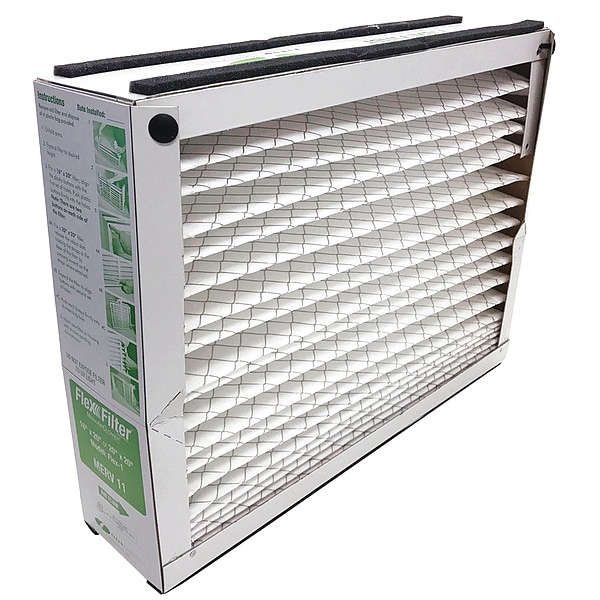

20x20x5 Pleated Air Filter, Standard Capacity, Synthetic, MERV 11, 1 micron, 6 PK
| Performance Rating | MERV 11 |
|---|---|
| Air Filter Capacity | Standard Capacity |
| Air Flow @ 300 fpm | 833 cfm |
| Media Material | Synthetic |
| Nominal Filter Size | 20x20x5 |
| Actual Filter Size | 16 in x 20 in x 4-3/4 in |
| Filters Out | Auto Emission Particulates, Dust |
| Frame or Header Material | Cardboard |
| Item | Pleated Air Filter |
| Nominal Depth | 5 in |
| Nominal Height | 20 in |
| Nominal Width | 20 in |
| Standards | ANSI/ASHRAE 52.2 |
| Final Recommended Resistance | 1.2 WC |
| Air Filter Item | Pleated Air Filter |
| Actual Depth | 4-3/4 in |
| Actual Width | 20 in |
| Includes | Gasket Foam |
| Max. Temp. | 150 deg F |
| Initial Resistance @ 300 fpm | 0.1 in wc |
| Actual Height | 16 in |
| Initial Resistance @ 500 fpm | 0.24 in wc |
| Gasket Location | 2 Sides |
| Filter Efficiency | 80 to 85% |
| Media Color | White |
| Common Applications | Furnace Air Cleaner |
| Air Flow @ 500 fpm | 1,389 cfm |
| Filter Efficiency - Air Filters | 80% to 85% |
| Removes Particles Down To | 1 micron |
| Filter Frame Color | White |
| Style - Air Filters | Panel |
| For Use With (Systems) | Field Controls FC11-2020; Skuttle DB-20-20, DB-20-16; GeneralAire Mac2020/2020M; Trion 455602-225/455602-725; Ultravation 90-116, 90-115 |
| Frame Material | Cardboard |
| Number of Filters | 6 |
| Filter Type | Panel |
| Filter Layer Type | Media |
| Includes Frame | Yes |
| Compatible Manufacturer Model Number | 000-0448-007 (003), 000-0448-008 (004), 255649-103, 259112-113, 455602-225, 455602-725, 5FM2020 (4531), 90-115, 90-116, 91-012, 91-013, DB-20-16, DB-20-20, FC11-2020, FCRM11-2020, MAC2020, MAC2020M |
| Filters Down To | 1 micron |
| Country of Origin (subject to change) | United States |
| Package Quantity | 6 |
