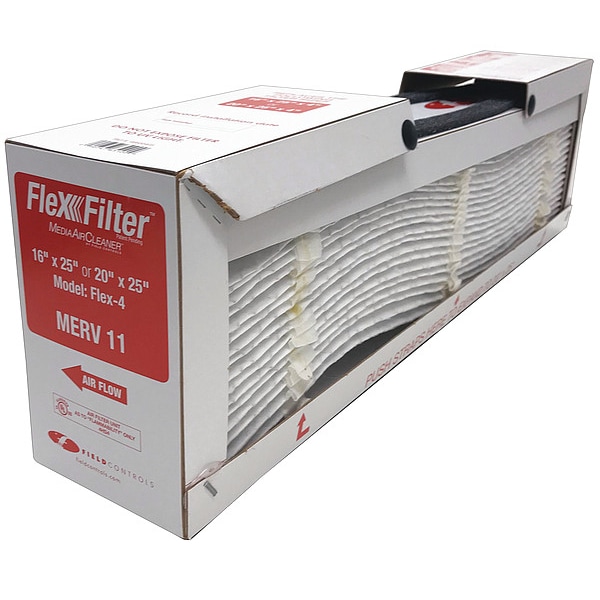

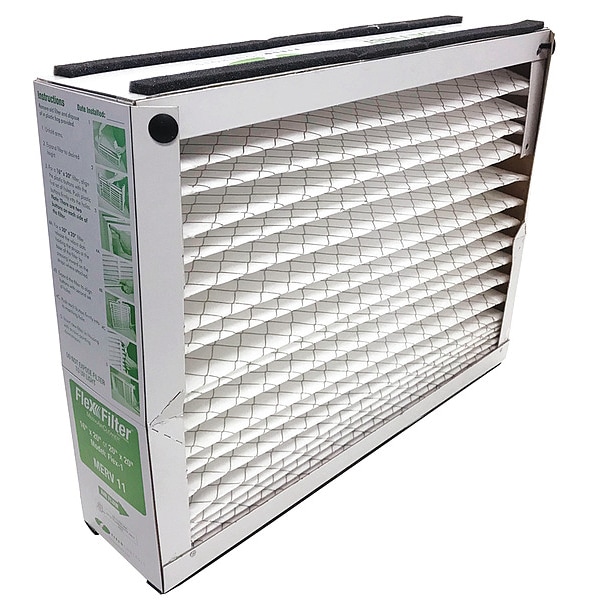

25x16x5 Pleated Air Filter, Standard Capacity, Synthetic, MERV 11, 1 micron, 6 PK
| Performance Rating | MERV 11 |
|---|---|
| Air Filter Capacity | Standard Capacity |
| Air Flow @ 300 fpm | 833 cfm |
| Media Material | Synthetic |
| Nominal Filter Size | 25x16x5 |
| Actual Filter Size | 16 in x 16 in x 4-1/8 in |
| Filters Out | Auto Emission Particulates, Dust |
| Frame or Header Material | Cardboard |
| Item | Pleated Air Filter |
| Nominal Depth | 5 in |
| Nominal Height | 25 in |
| Nominal Width | 16 in |
| Common Applications | Furnace Air Cleaner |
| Style - Air Filters | Panel |
| Media Color | White |
| Filter Frame Color | White |
| Final Recommended Resistance | 1.2 WC |
| Actual Depth | 4-1/8 in |
| Air Filter Item | Pleated Air Filter |
| Filter Efficiency | 80 to 85% |
| Removes Particles Down To | 1 micron |
| Initial Resistance @ 300 fpm | 0.1 in wc |
| Initial Resistance @ 500 fpm | 0.24 in wc |
| Actual Height | 16 in |
| Actual Width | 16 in |
| Gasket Location | 2 Sides |
| Max. Temp. | 150 deg F |
| Includes | Gasket Foam |
| Air Flow @ 500 fpm | 1,389 cfm |
| Filter Efficiency - Air Filters | 80% to 85% |
| For Use With (Systems) | Field Controls FC8-1625/FC11-1625, FC8-2025/FC11-2025, FCRA11-2025; Skuttle DB-25-16, DB-25-20; GeneralAire MAC1400/MAC1400M, MAC2000/MAC2000M, MAC-L; Trion 455602-125/455602-625, 455602-025/455602-525, 266380-010/266380-510, 447380-010/477380-510; Ultravation 90-106, 90-107, 90-064/90-027 |
| Frame Material | Cardboard |
| Compatible Manufacturer Model Number | 000-0448-005 (001), 000-0448-006 (002), 255649-102, 255649-105, 259112-102, 259112-105, 266380-010, 266380-510, 447380-010, 455602-025, 455602-125, 455602-525, 455602-625, 477380-510, 5FM1625 (4511), 5FM2025 (4501), 90-027, 90-064, 90-106, 90-107, 91-005, 91-006, DB-25-16, DB-25-20, FC11-1625, FC11-2025, FC8-1625, FC8-2025, FCRA11-2025, FCRM11-1625, FCRM11-2025, MAC-L, MAC1400, MAC1400M, MAC2000, MAC2000M |
| Filter Layer Type | Media |
| Filters Down To | 1 micron |
| Filter Type | Panel |
| Number of Filters | 6 |
| Includes Frame | Yes |
| Country of Origin (subject to change) | United States |
| Package Quantity | 6 |
