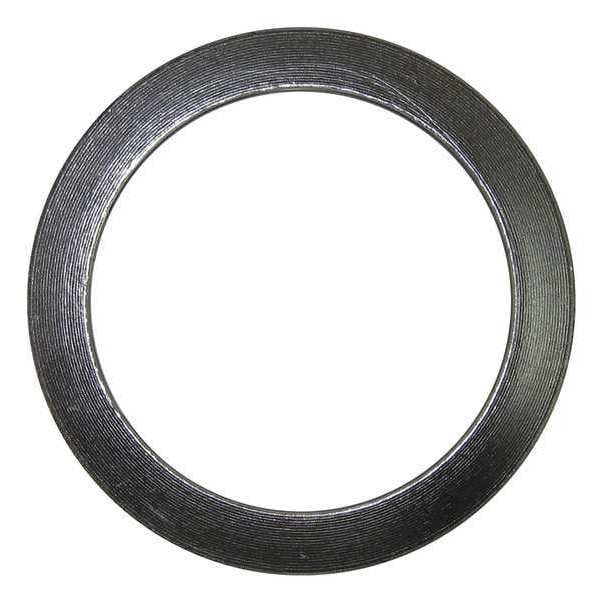

Metal Gasket, 1-1/2 in. In, 2 in. Out
| Outside Dia. | 2 in |
|---|---|
| Inside Dia. | 1-1/2 in |
| Thickness | 1/8 in |
| Material of Construction | 304 Stainless Steel |
| Max. Pressure (PSI) | 300 |
| Color | Gray |
| Item | Spiral Wound Flange Gasket |
| Product Type | Spiral Wound Metal Gasket |
| Metal Detectable | No |
| Standards | None |
| Type | Ring Gasket |
| Continuous Max. Temp. (F) | 842 deg F |
| Winding | 304SS with Flexible Graphite |
| Temp. Range (F) | -320 Degrees to 842 Degrees |
| Outer Ring Material | Carbon Steel |
| Inner Ring Stainless Steel Grade | Not Applicable |
| Spiral Winding Stainless Steel Grade | 304 |
| Spiral Winding Material | Stainless Steel |
| Minimum Operating Temperature | -320 deg F |
| Inside Diameter | 1-1/2 in |
| Maximum Operating Pressure | 300 psi |
| System of Measurement | Inch |
| Maximum Operating Temperature | 842 deg F |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
