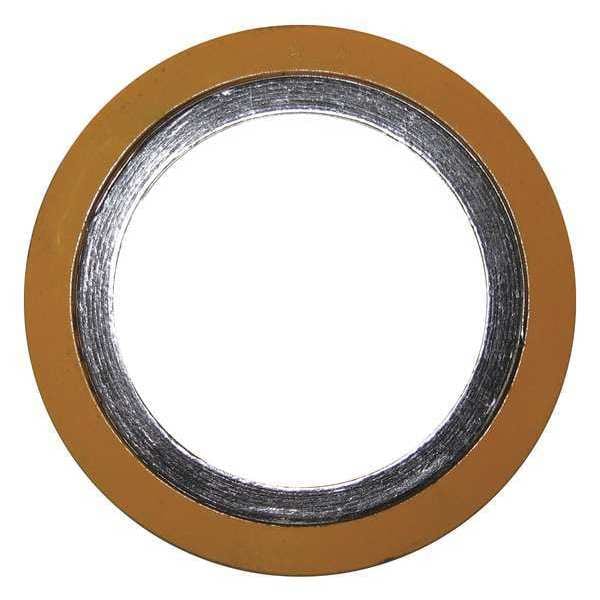

Metal Gasket, 2-5/16in. In, 5-41/64in. Out
| Pipe Size | 2 in |
|---|---|
| Outside Dia. | 5-5/8 in |
| Inside Dia. | 2-5/16 in |
| Thickness | 1/4 in |
| Material of Construction | Alloy 20 |
| Flange Class | Class 1500, Class 900 |
| Color | Black Band, Gray Stripe |
| Item | Spiral Wound Flange Gasket |
| Product Type | Spiral Wound Metal Gasket |
| Metal Detectable | No |
| Temp. Range (F) | -320 Degrees to 842 Degrees |
| Standards | ASME B16.20, ASME/ANSI Pressure Class-900-1500 LB |
| Continuous Max. Temp. (F) | 842 deg F |
| Winding | Alloy 20 with Flexible Graphite and carbon steel centering ring |
| Type | Ring Gasket |
| For Flange ANSI Class | 900, 1,500 |
| Spiral Winding Material | Stainless Steel |
| Rim Stripe Color | Gray |
| Spiral Winding Stainless Steel Grade | Alloy 20 |
| Outer Ring Material | Carbon Steel |
| Inner Ring Stainless Steel Grade | Not Applicable |
| Maximum Operating Temperature | 842 deg F |
| Minimum Operating Temperature | -320 deg F |
| For Pipe Size | 2 in |
| Inside Diameter | 2-5/16 in |
| System of Measurement | Inch |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
