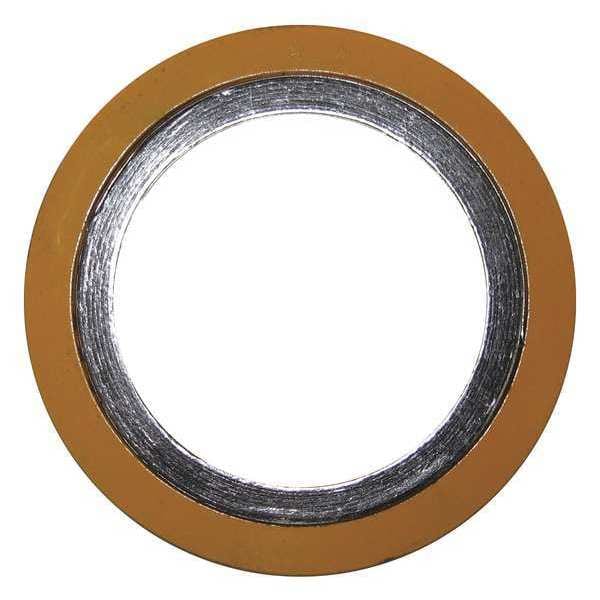

Metal Gasket, 7-13/64in. In, 8-3/4in. Out
| Pipe Size | 6 in |
|---|---|
| Outside Dia. | 8-3/4 in |
| Inside Dia. | 7-3/16 in |
| Thickness | 3/16 in |
| Material of Construction | 304 Stainless Steel |
| Flange Class | Class 150 |
| Color | Gray Stripe, Yellow Band |
| Item | Spiral Wound Flange Gasket |
| Product Type | Spiral Wound Metal Gasket |
| Metal Detectable | No |
| Standards | ASME B16.20, ASME/ANSI Pressure Class-150 LB |
| Type | Ring Gasket |
| Temp. Range (F) | -320 Degrees to 842 Degrees |
| Winding | 304SS with Flexible Graphite and carbon steel centering ring |
| Continuous Max. Temp. (F) | 842 deg F |
| For Flange ANSI Class | 150 |
| FDA Approved | No |
| Outer Ring Material | Carbon Steel |
| Rim Stripe Color | Gray |
| Inner Ring Stainless Steel Grade | Not Applicable |
| Filler Material | Graphite |
| Outside Rim Color | Yellow |
| Spiral Winding Material | Stainless Steel |
| Inner Ring Material | None |
| Spiral Winding Stainless Steel Grade | 304 |
| System of Measurement | Inch |
| Maximum Operating Temperature | 842 deg F |
| Inside Diameter | 7-1/4 in |
| Minimum Operating Temperature | -320 deg F |
| For Pipe Size | 6 in |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
