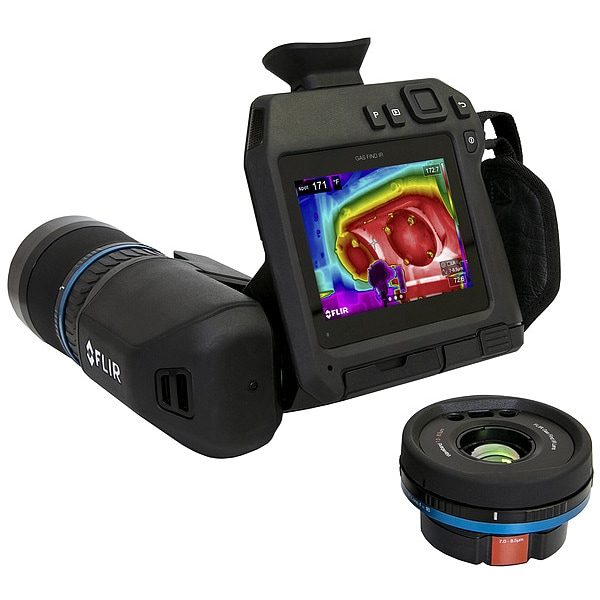

IR Cam, 320x240IR Res, 25x19FOV
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Temp. Range (C) - Infrared | -20 Degrees to 120 Degrees |
| Standards | IEC 60068-2-27, IEC 60068-2-6 |
| Articulating Lens | Yes |
| Multiple Lens Option | No |
| Ambient Temp. Range | -15 Degrees C to 50 Degrees C |
| Field of View - IR Camera | 25.0 Degrees Horizontal x 19.0 Degrees Vertical |
| Emissivity | Adjustable 0.01 to 1.00 |
| Thermal and Visible Light Blending | Yes |
| Focus Distance - Infrared | Minimum of 0.30 m |
| Spectral Response - Infrared | 7.0 to 14.0um |
| Removable Memory Card | SD |
| Temp. Range (F) - Infrared | -4 Degrees to 248 Degrees |
| Alarm | Yes |
| Picture In Picture | Yes |
| Features | Data Logging, Image Notation, Image Sketching, Multi Spectral Dynamic Imaging (MSX(R)), Viewfinder |
| Data Logging - Instrument | No |
| Temp. Accuracy (F) - Infrared | +/-9.0 Degrees |
| Charger Replacement | 423N33 |
| Display - IR Camera | 4.0 in Touch Screen Color LCD |
| Focus Method | Auto, Manual |
| Wireless | Yes |
| File Formats | CSQ |
| Ambient Temp. Range (F) | 5 Degrees to 122 Degrees |
| Includes | (2) Lens Caps, 25 Degrees Lens, Battery Charger, Eyecup, Hard Carrying Case, Lanyards, Lens Cleaning Cloth, PD Adapter, Power Supply, Straps, USB A to USB C Cable, USB C to USB C Cable, USB to HDMI Cable |
| Safety Rating | EN/UL/CSA/PSE 60950-1 |
| NIST Certified | No |
| Visual Light Resolution | 5 MP |
| Detector Resolution - Infrared | 320 x 240 Pixels |
| Manufacturers Warranty Length | 10 yr IR Detector, 2 yr Parts and Labor |
| Special Features | Gas Detection |
| Display Resolution - IR Camera | 640 x 480 Pixels |
| Thermal Sensitivity - IR Camera | 25 mK |
| Frame Rate - IR Camera | 30 Hz |
| Laser Sighting | No |
| Image Notation | Text |
| Included Charger | 423N33 |
| Item | Infrared Camera |
| Drop Tested | 2 m |
| Item - Infrared Camera | Infrared Camera |
| Temp. Accuracy (C) - Infrared | +/-5 Degrees |
| Digital Display Screen Type | LCD Touchscreen |
| Intrinsic Safety | Not Specified Intrinsically Safe |
| Battery Chemistry | Lithium Ion |
| Temperature Alerts | High Temperature, Low Temperature |
| Minimum Emissivity Setting | 0.01 |
| Battery Run Time | 4 hr |
| Minimum Temperature Measured Degrees F | -4 Degrees F |
| Number of Batteries Required | 2 |
| Alert Type | Digital Display, Sound |
| Lens Angles Included | 25 Degrees |
| Maximum Operating Temperature Degrees F | 122 Degrees F |
| Field of View | 25 Degrees x 19 Degrees |
| Laser Sighting Type | Not Applicable |
| Maximum Emissivity Setting | 1.00 |
| Data Transfer Type | Wired, Wireless |
| Infrared Resolution | 320 x 240 |
| Maximum Temperature Measured Degrees F | 932 Degrees F |
| Accuracy Degrees C | +/-3.0% of Reading or +/-3.0 Degrees Whichever is Greater |
| Battery Voltage | 3V |
| Calibration Certificate Type | Not Certified |
| Accuracy Degrees F | +/-3.0% of Reading or +/-5.4 Degrees F Whichever is Greater |
| Minimum Focus Distance | 0.3 m |
| Display Size | 4 in |
| Series | FLIR GF Series |
| Minimum Operating Temperature Degrees F | 5 Degrees F |
| Interface | SD Card, USB, Wireless |
| Manufacturer Warranty Length | 1 yr |
| Maximum Temperature Measured Degrees C | 80 Degrees C |
| Display Resolution | 640 x 480 |
| Minimum Temperature Measured Degrees C | -20 Degrees C |
| Batteries Included | Yes |
| Frame Rate | 30 Hz |
| Thermal Sensitivity | 25 mK |
| Emissivity Adjustability | Adjustable |
| Package Quantity | 1 |
