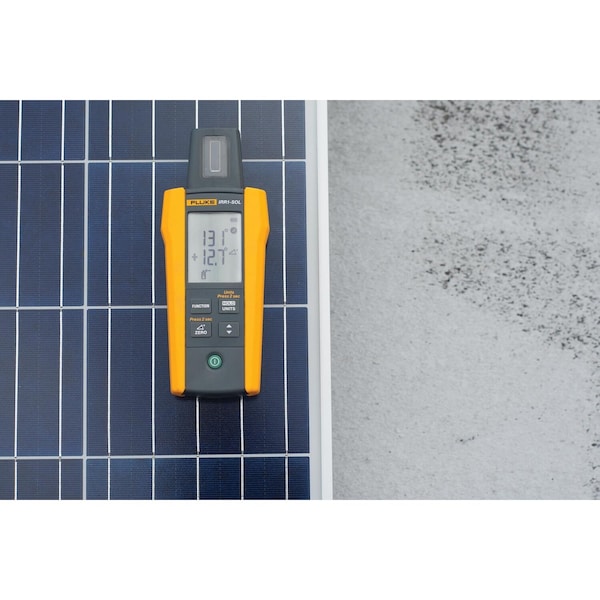

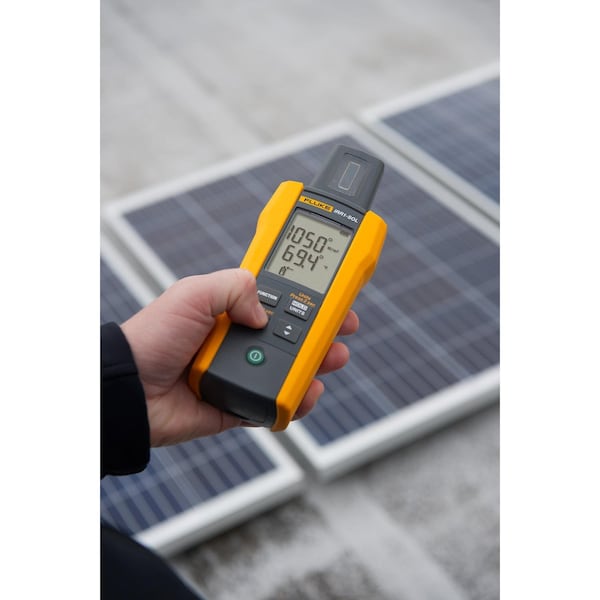

Irradiance Meter, 1,400 W/sq m, -90 -90
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Item | Solar Irradiance Meter |
| Power Source | (4) AAA Batteries |
| Interface | LCD Display |
| Auto Power Off | Yes |
| Data Logging | No |
| Irradiance Range | 0 to 1400 W/m² |
| Display | LCD |
| Features | Measure solar irradiance, ambient and PV module temperature, array orientation and tilt angles |

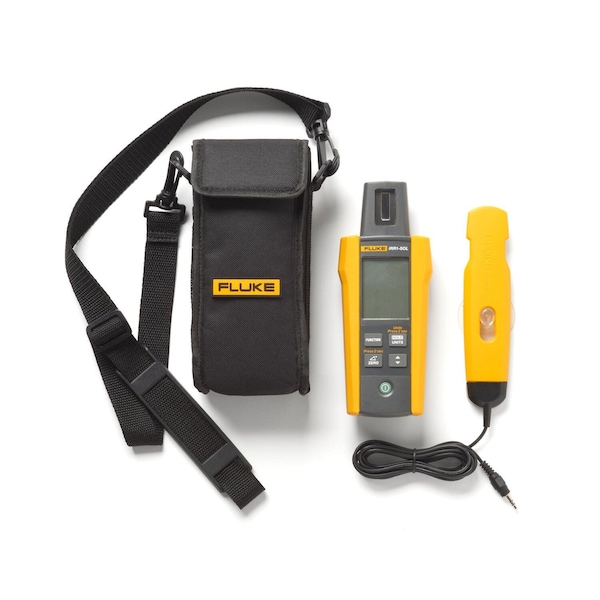

| Includes | Carry Case with Shoulder Strap |
| Temp. Range | -20 to 50 Degrees C |
| Compass Bearing Range | 0 Degrees to 360 Degrees |
| Inclinometer Range | -90 to 90 deg |
| Recommended Battery Size | AA |
| Inclination Resolution | 1 Degrees |
| Irradiance Accuracy | +/-5% + 5 Digit |
| Irradiance Measurement - Maximum | 1,400 W/sq m |
| Temperature Measurement - Maximum | 212 deg F |
| Minimum Operating Temperature | -4 deg F |
| Inclination Measurement - Minimum | -90 deg |
| Irradiance Measurement - Minimum | 100 W/sq m |
| Irradiance Resolution | 1 W/sq m |
| Maximum Operating Temperature | 122 deg F |
| Number of Batteries | 4 |
| Temperature Resolution | 0.1 Degrees C |
| Includes Batteries | No |
| Temperature Measurement - Minimum | -22 deg F |
| Inclination Measurement - Maximum | 90 Degrees |
| Battery Life (typical) | 50 hours (≤9000 readings) |
| Resolution (Inclination Angle) | 0.1° |
| Measuring Range (Irradiance) | 100 to 1400 W/m² |
| Measuring Range (Compass) | 0° to 360° |
| Measuring Range (Inclination Angle) | -90° to +90° |
| Resolution (Temperature) | 0.1 °C (0.2 °F) / 1 °F @>100 °F |
| IP Protection | IP40 |
| Measuring Accuracy (Irradiance) | ± (5 % + 5 Digit) |
| Measuring range (°C) | -30 °C to 100 °C (-22 °F to 212 °F) |
| Resolution (Compass) | 1° |
| Measuring Accuracy (typical) | ± 1.5°@ -50° to +50°±2.5° @ -85° to -50° and +50° to +85°±3.5° @ -90° to -85° and +85° to +90° |
| Measuring Accuracy (Compass) | ±7° |
| Operating Temperature 80PR-IRR | -30 °C to +100 °C |
| Altitude | 0 m to max. 2000 m |
| Storage temperature | -30 °C to 60 °C (humidity <80%) |
| Resolution (Irradiance) | 1 W/m² |
| Measuring Accuracy (Temperature) | "±5 °C (±9 °F)@ -10 °C to 75 °C (14 °F to 167 °F),±8 °C (±14.5 °F)@ -30 °C to -10 °C (-22 °F to 14 °F), and75 °C to 100 °C (167 °F to 212 °F)" |
| International | IEC 61326-1: Portable Electromagnetic Environment |
| L x W x H | 150 x 80 x 35 mm (5.90 x 3.14 x 1.37 in) |
| Operating Temperature IRR1-SOL | -20 °C to 50 °C (humidity <80%), noncondensing |
| Batteries | 4 AA Alkaline Batteries |
| Package Quantity | 1 |
