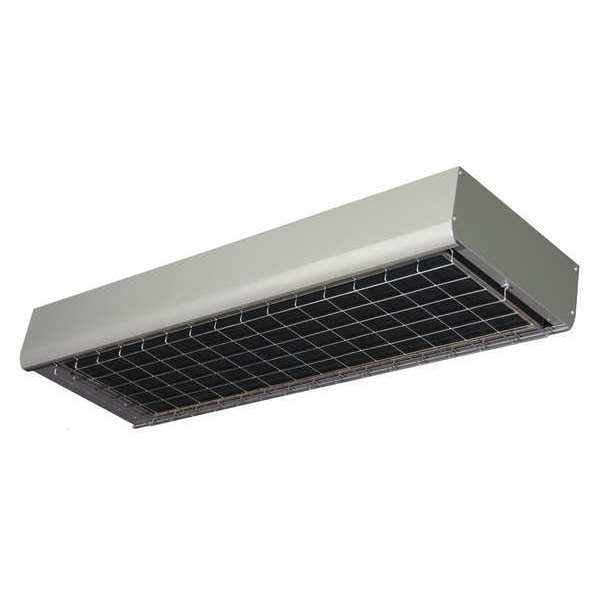

Electric Infrared Heater, 1 or 3 Phase, Aluminum, 32,414 BtuH, 480V AC 9500 W
| Indoor/Outdoor Usage | Indoor, Outdoor |
|---|---|
| Heater Mounting Type | Ceiling Suspended, Wall |
| Includes | Electrical Enclosure, Grill, L-Shape Support Brackets |
| Watts | 9,500 |
| Item | Electric Infrared Heater |
| BtuH Output | 32,414 |
| Heater Voltage | 480VAC |
| Electric Heater Phase | 0.3333 |
| Number of Lamps | 1 |
| Length | 47-1/16 in |
| Beam Pattern | 60 deg |
| Amps @ 1 Phase | 19.8 |
| Width | 14-3/4 in |
| Heat Pattern Coverage @ Floor (12 Ft.) | 15 x 13 |
| Infrared Electromagnetic Wave Type | Medium Wave |
| Heat Pattern Coverage @ Floor (14 Ft.) | 18 x 16 |
| Standards | ETL Listed for US & Canada |
| Watts Delivered/Sq.-Ft. 12 | 48.7 |
| Height | 9-1/2 in |
| Radiant Efficiency | 78.5 % |
| Amps @ 3 Phase | 11.44 |
| Housing Material | Aluminum |
| Element Type | Emitter |
| Watts Delivered/Sq.-Ft. 14 | 33 |
| Watts Delivered/Sq.-Ft. 16 | 25.1 |
| Finish | Nickel Brush Aluminum |
| Watts Delivered/Sq.-Ft. 18 | 20.7 |
| Heat Pattern Coverage @ Floor (18 Ft.) | 23 x 20 |
| Heat Pattern Coverage @ Floor (16 Ft.) | 21 x 18 |
| Voltage | 480 V AC |
| Phase | 1, 3 |
| Grille Height | 45 in |
| Overall Width | 14-3/4 in |
| Overall Dimensions - L x W x D | 47-1/16 in x 14-3/4 in x 9-1/4 in |
| Amperage | 11.4A/19.8A |
| Grille Material | Steel, Zinc Plated |
| Housing Color | Silver |
| Wattage Output | 9,500 W |
| Voltage, Phase | 480V AC, 1 or 3-phase |
| Housing Material, Housing Color | Aluminum, Silver |
| Overall Depth | 9-1/4 in |
| Frequency | 50/60Hz |
| NEMA Plug Configuration | Hard wired |
| For Use Outdoors | Indoor, Outdoor |
| Brightness | 95 lm |
| Grille Depth | 1-1/4 in |
| Heating Method | Radiant |
| Grille Width | 13-3/4 in |
| Max. Operating Temp. | Varies, based on distance from target & mounting height |
| Mobility | Stationary |
| Overall Length | 47-1/8 in |
| Housing Finish | Nickel-Gray |
| Electrical Connection | Hardwired |
| Heater Mounting Position | Horizontal or Vertical Burn |
| Heating Capacity | 32,414 BtuH |
| For Use Indoors/Outdoors | Indoor, Outdoor |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
