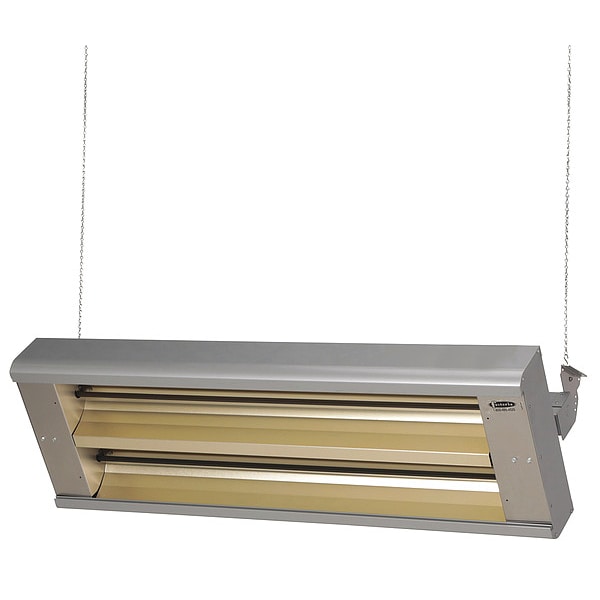

Electric Infrared Heater, 1 Phase, Aluminum, 480V AC
| Includes | (4) High Temperature Leads, 3 in Spacer Brackets, Elements, Guard |
|---|---|
| Item | Electric Infrared Heater |
| Number of Lamps | 2 |
| Beam Pattern | 60 deg |
| Infrared Electromagnetic Wave Type | Short Wave |
| Element Type | Quartz Lamp |
| Phase | 1 |
| Radiant Efficiency | 96 % |
| Standards | ETL Listed for US & Canada |
| Housing Material | Aluminum |
| Voltage | 480 V AC |
| Grille Height | 38-1/2 in |
| Heating Method | Radiant |
| Overall Depth | 11 in |
| Electrical Connection | Hardwired |
| For Use Outdoors | Indoor, Outdoor |
| Heating Capacity | 24,915 BtuH |
| Mobility | Stationary |
| Wattage Output | 7,300 W |
| Grille Material | Stainless Steel |
| NEMA Plug Configuration | Hard wired |
| Amperage | 15.2 A |
| Overall Dimensions - L x W x D | 46 in x 15 in x 11 in |
| Housing Finish | Nickel-Gray |
| Heater Mounting Position | Horizontal Burn |
| Overall Length | 46 in |
| Housing Material, Housing Color | Aluminum, Silver |
| Max. Operating Temp. | Varies, based on distance from target & mounting height |
| Grille Depth | 1/8 in |
| Reflector Material | Aluminum, Gold Anodized |
| Grille Width | 12-1/4 in |
| Voltage, Phase | 480V AC, 1-phase |
| Overall Width | 15 in |
| Housing Color | Silver |
| Frequency | 50/60Hz |
| Brightness | 58,400 lm |
| For Use Indoors/Outdoors | Indoor, Outdoor |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
