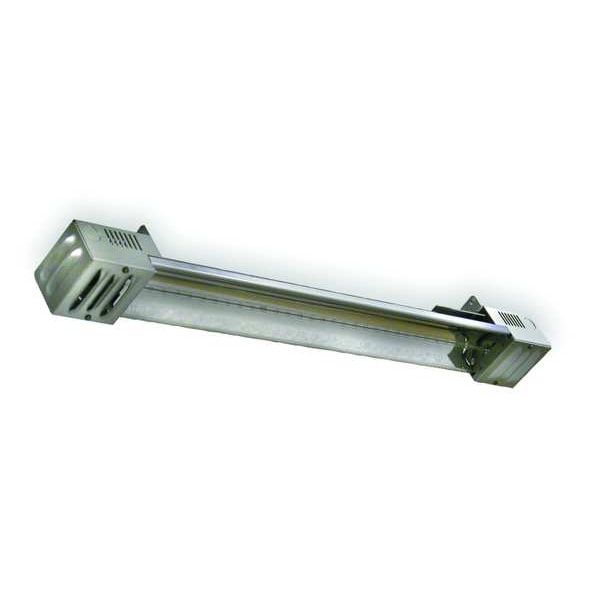

Electric Infrared Heater, 1 Phase, Aluminum, 5460 BtuH, 277V AC 1600 W
| Indoor/Outdoor Usage | Indoor Only |
|---|---|
| Electric Heater Item | Electric Infrared Heater, Without Lamp |
| Heater Mounting Type | Suspended |
| Includes | (3) 24 in Lead Wires |
| Watts | 1,600 |
| Item | Electric Infrared Heater |
| BtuH Output | 5,460 |
| Heater Voltage | 208/277VAC |
| Electric Heater Phase | 1 |
| Number of Lamps | 1 |
| Length | 24 in |
| Beam Pattern | 60 deg |
| Watts Delivered/Sq.-Ft. 8 | 15 |
| Heat Pattern Coverage @ Floor (8 Ft.) | 10-1/2 x 10 |
| Cord Type | Hard Wired |
| Finish | Bright Aluminum |
| Lumens | 12,800 |
| Standards | ETL Listed for US & Canada |
| Heat Pattern Coverage @ Floor (12 Ft.) | 15 x 14 |
| Watts Delivered/Sq.-Ft. 12 | 8 |
| Amps @ 1 Phase | 7.70/3.30 |
| Watts Delivered/Sq.-Ft. 10 | 10 |
| Housing Material | Aluminum |
| Heat Pattern Coverage @ Floor (10 Ft.) | 13 x 12 |
| Height | 3-3/4 in |
| Width | 3-3/8 in |
| Radiant Efficiency | 96 % |
| Element Type | Quartz Lamp |
| Infrared Electromagnetic Wave Type | Short Wave |
| Voltage | 277 V AC |
| Phase | 1 |
| Amperage | 3.3A/7.7A |
| Housing Color | Silver |
| Electrical Connection | Hardwired |
| Heating Capacity | 5,461 BtuH |
| Overall Length | 24 in |
| Frequency | 50/60Hz |
| Reflector Material | Aluminum, Coilzak |
| Housing Material, Housing Color | Aluminum, Silver |
| Wattage Output | 900W/1600W |
| Heater Mounting Position | Horizontal Burn |
| Overall Depth | 3-3/8 in |
| For Use Outdoors | Indoor Only |
| Max. Operating Temp. | Varies, based on distance from target & mounting height |
| Heating Method | Radiant |
| Overall Dimensions - L x W x D | 24 in x 3-3/4 in x 3-3/8 in |
| Brightness | 12,300 lm |
| Voltage, Phase | 277V AC, 1-phase |
| NEMA Plug Configuration | Hard wired |
| Mobility | Stationary |
| Housing Finish | Bright |
| Overall Width | 3-3/4 in |
| For Use Indoors/Outdoors | Indoor Only |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
