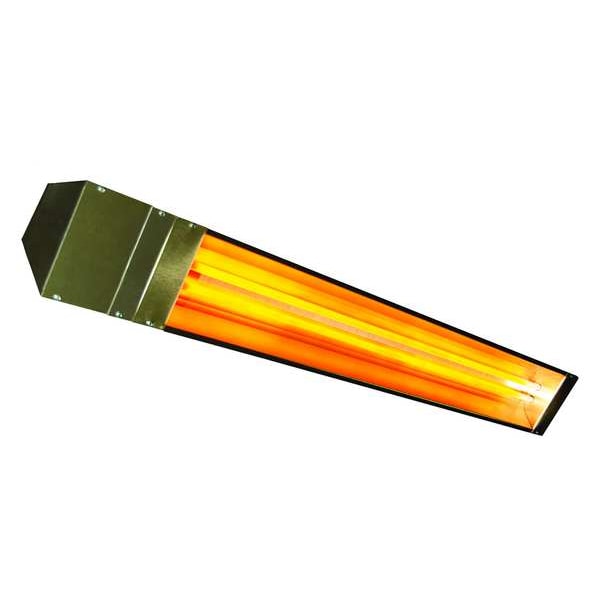

Electric Infrared Heater, 480V AC, 1 Phase
| Heating Method | Radiant |
|---|---|
| Includes | (2) 2 ft Long Chains, (2) Spacer Brackets, (4) S Hooks, Heating Element |
| NEMA Plug Configuration | Hardwired |
| Item | Electric Infrared Heater |
| Phase | 1 |
| Voltage | 480 V |
| Standards | ETL Listed |
| Element Type | Quartz Tube |
| Voltage, Phase | 480V AC, 1-phase |
| Radiant Efficiency | 60 % |
| Amperage | 12.5 A |
| Wattage Output | 6000W |
| Overall Length | 66 in |
| Overall Width | 7-1/2 in |
| Number of Lamps | 2 |
| Housing Finish | Stainless Steel |
| Housing Material | 304 Stainless Steel |
| Housing Material, Housing Color | 304 Stainless Steel, Silver |
| Overall Dimensions - L x W x D | 66 in x 7-1/2 in x 7 in |
| Reflector Material | Aluminum, Gold Anodized |
| Overall Depth | 7 in |
| Max. Operating Temp. | Varies, based on distance from target & mounting height |
| Frequency | 50/60Hz |
| Electrical Connection | Hardwired |
| Heater Mounting Position | Horizontal Burn |
| Beam Pattern | 60 deg F |
| Mobility | Stationary |
| Heating Capacity | 20,478 BtuH |
| Brightness | 60 lm |
| Infrared Electromagnetic Wave Type | Medium Wave |
| Housing Color | Silver |
| For Use Outdoors | Indoor, Outdoor |
| For Use Indoors/Outdoors | Indoor, Outdoor |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
