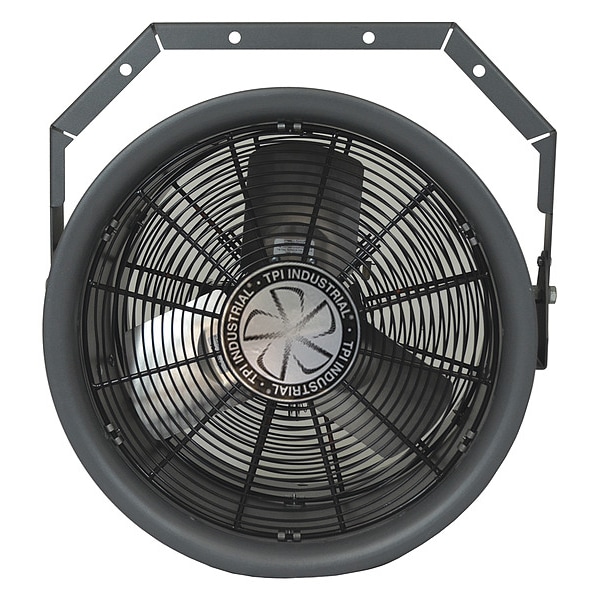

High-Velocity Industrial Fan, 16 in Blade Dia, 3 Blades, 1 Speeds, 277V AC, 23 5/8 in W
| Number of Blades | 3 |
|---|---|
| Blade Diameter | 16 in |
| Number of Speeds | 1 |
| Voltage | 277V AC |
| Width | 23-5/8 in |
| Includes | Mounting Bracket, Steel 11-gauge |
| Phase | 1 |
| Blade Material | Aluminum |
| Air Flow | 3,000 cfm |
| Amps | 2.1 |
| Item | High-Velocity Industrial Fan |
| Air Velocity @ 10 Ft. | 800 fpm |
| Fan Blade Color | Gray |
| Standards | ETL Listed, OSHA |
| Watts | 373 |
| Bearing Type | Ball |
| Air Velocity @ 80 Ft. | 10 fpm |
| Housing Finish - Fans | Expoxy Enamel Over Powder Primer |
| Assembly Required | No |
| Motor Enclosure | Totally Enclosed |
| Max. Mounting Height | 10 to 40 ft |
| Air Velocity @ 60 Ft. | 50 fpm |
| Battery Operated - Fans | No |
| Fan Housing Material | Steel |
| Fan Mounting Location | Ceiling, I-Beam, Wall |
| Wire Guard Finish | Black Powder Coated |
| Max. Ambient Temp. | 115 deg F |
| Fan Accessory Finish | Painted Motor and Mill Finish Brackets |
| Motor Insulation | Class B |
| Oscillation | Non-Oscillating |
| Motor HP | 0.5 |
| Fan Power Source | Hardwired |
| RPM | 1725 |
| For Use With | HV-1 |
| Shaft Dia. | 1/2 in |
| Air Velocity @ 40 Ft. | 100 fpm |
| Length | 13-1/2 in |
| Motor Design | Permanent Split Capacitor |
| Color | Gray |
| Height | 25-1/8 in |
| Hz | 60 Hz |
| Sound Level | 76 dBA |
| Wheeled Base | Stationary |
| Depth | 13 1/2 in |
| Thermal Protection | Automatic Reset |
| Environmental Applications | Industrial |
| Fan Blade Finish | No Decorative Finish |
| Air Velocity @ 20 Ft. | 400 fpm |
| Fan Cord Length | No Cord |
| Fan Accessory Material | Steel |
| Guard Material | Steel |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
