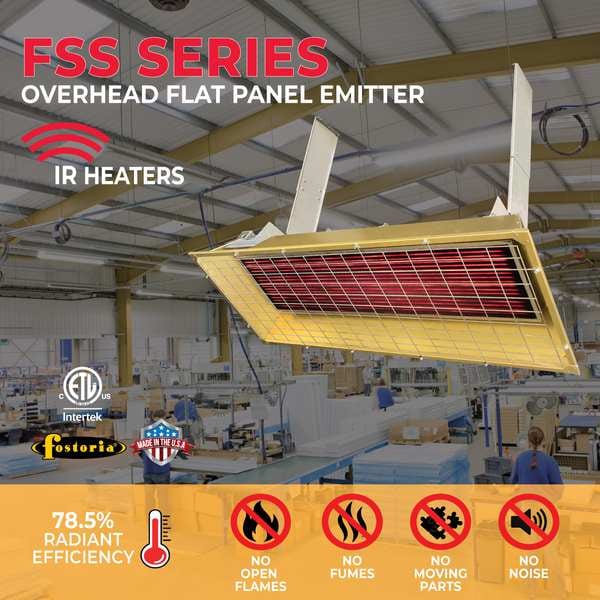

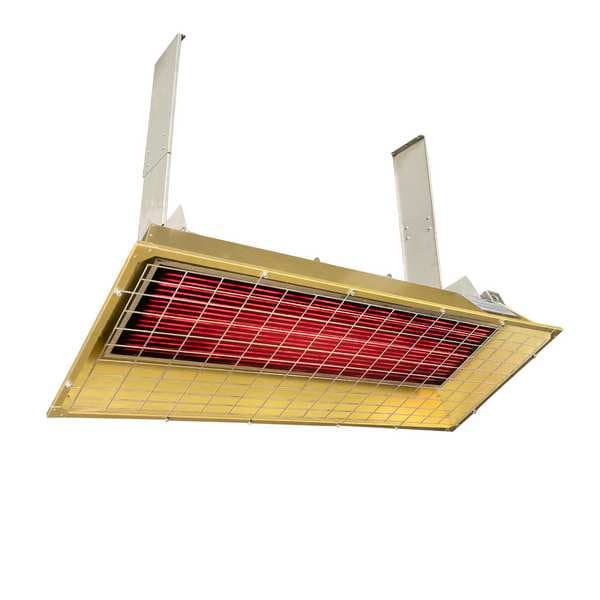

Infrared Overhead Electric Heater, 1, 3 Phase, Aluminum, 208V AC
| Includes | L Bracket |
|---|---|
| Item | Infrared Overhead Electric Heater |
| Number of Lamps | 1 |
| Beam Pattern | 60 deg |
| Housing Finish | Gold Anodized |
| Amperage | 26.3 A, 45.6 A |
| Radiant Efficiency | 78.5 % |
| Brightness | Not Applicable |
| Standards | ETL Listed |
| Housing Material | Aluminum |
| Overall Width | 20 in |
| Overall Depth | 7-3/4 in |
| Heating Method | Radiant |
| Housing Color | Gold |
| Phase | 1, 3 |
| Overall Dimensions - L x W x D | 49 in x 20 in x 7-3/4 in |
| Voltage, Phase | 208 V AC, 1 or 3-Phase |
| Overall Length | 49 in |
| Wattage Output | 9,500 W |
| Heating Capacity | 32,414 BtuH |
| Element Type | Emitter |
| Reflector Material | Gold Anodized Aluminum |
| Mobility | Stationary |
| Overall Height | Not Applicable |
| Infrared Electromagnetic Wave Type | Medium Wave |
| For Use Outdoors | Indoor, Outdoor |
| NEMA Plug Configuration | Hard wired |
| Voltage | 208 V AC |
| Electrical Connection | Hardwired |
| For Use Indoors/Outdoors | Indoor, Outdoor |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
