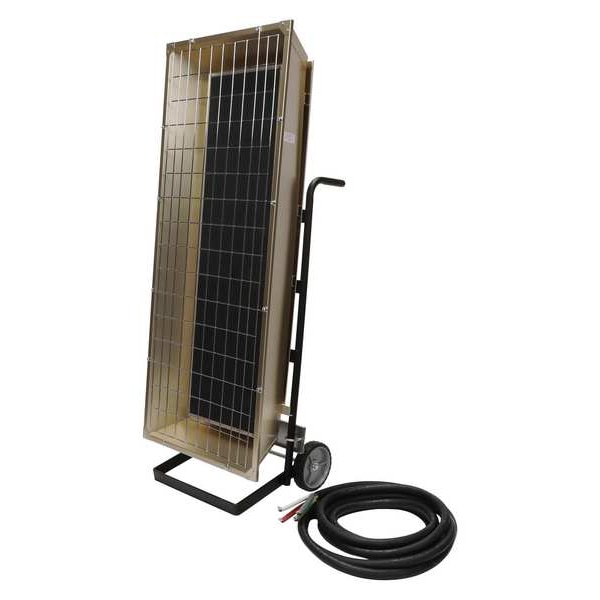

Portable Heater, 1 Phase, Aluminum, 480V AC
| Includes | Electrical Enclosure, Element Panel, Safety Grill, Steel Cart |
|---|---|
| Item | Portable Heater |
| Number of Lamps | 1 |
| Beam Pattern | 60 deg |
| Housing Material | Aluminum |
| Element Type | Emitter |
| Standards | None |
| Radiant Efficiency | 78.5 % |
| Infrared Electromagnetic Wave Type | Medium Wave |
| Voltage | 480 V AC |
| Cord Length | 15 ft |
| Phase | 1 |
| Grille Material | Steel, Zinc Plated |
| Heating Capacity | 32,414 BtuH |
| Max. Operating Temp. | Varies, Based on Distance from Target |

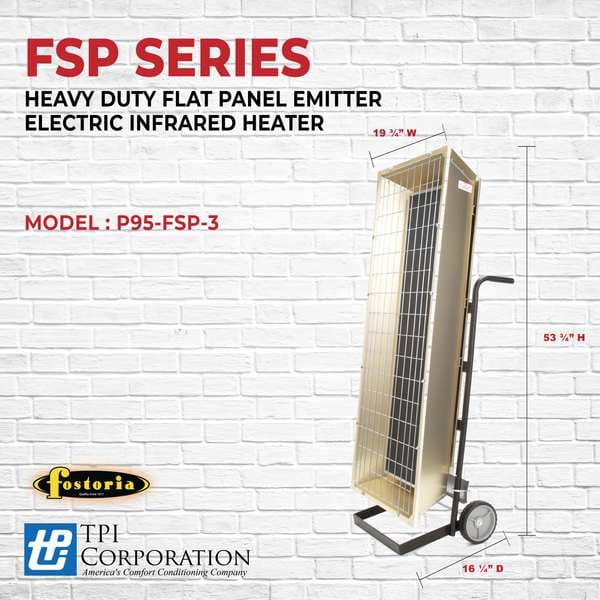

| Overall Dimensions - L x W x D | 53-3/4 in x 19-3/4 in x 16-1/4 in |
| Amperage | 11.44 A |
| Voltage, Phase | 480V AC, 3 or 1-Phase |
| Housing Material, Housing Color | Aluminum |
| Grille Depth | 1/8 in |
| UL Cord Rating | SOOW |
| Overall Depth | 16-1/4 in |
| NEMA Plug Configuration | Hard wired |
| Grille Width | 19-3/4 in |
| Reflector Material | Gold Anodized |
| Control Type | None |
| Housing Finish | Gold Anodized |
| Grille Height | 49 in |
| Overall Length | 16-1/4 in |
| Overall Height | 53-3/4 in |
| Brightness | 95 lm |
| Electrical Connection | Hardwired |
| Overall Width | 19-3/4 in |
| Frequency | 50/60 Hz |
| Heating Method | Radiant |
| Housing Color | Gold/Black |
| Cord Construction | 14/4 |
| Wattage Output | 9,550 W |
| For Use Outdoors | Indoor, Outdoor |
| Heater Mounting Position | Vertical Burn |
| Mobility | Wheeled |
| For Use Indoors/Outdoors | Indoor, Outdoor |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
