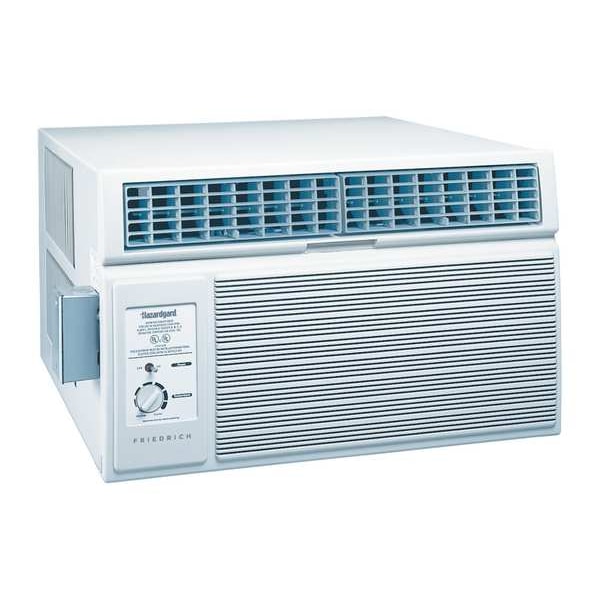

Through-the-Wall Air Conditioner, 208/230V AC, 23,700/24,000 BtuH, 25 15/16 in W.
| Item | Through-the-Wall Air Conditioner |
|---|---|
| Voltage | 208/230V AC |
| BtuH Cooling | 23,700/24,000 |
| Width | 25-15/16 in |
| Height | 17-15/16 in |
| Includes | Chassis |
| Watts | 2727/2788 W |
| Depth | 27-3/8 in |
| Dehumidification | 8/7.5 pph |
| Fan Speeds Cooling | 1 |
| Fan-Only Speeds | 1 |
| Sleeve | Yes |
| Control Type | Mechanical |
| Amps | 12.6/13.5 A |
| Max. Window Width | 42 in |
| Chassis Type | Slide Out |
| High CFM | 385 |
| Max. Wall Thickness | 6 in |
| Color | Gray |
| Air Flow Direction | Eight-Way |
| EER | 8.5/8.8 |
| Min. Window Width | 27-7/8 in |
| BtuH | 23,700/24,000 |
| Min. Window Height | 18-3/16 in |
| Remarks | Fan Runs Continuous When Unit is Switched On, Thermostat Cycles Compressor, Hot Gas Bypass Low Ambient Control to Permit Operation Without Freezing At Outdoor Ambient Temperature As Low As 45 F, Hermetically Sealed Refrigeration System, Run Capacitor Withstands Voltage Overloads Up to 440 Volts, Utilizes Direct-Wired, 15-Amp Circuit With Time-Delay Fuse That Will Tolerate Surge Current Without Tripping The Breaker |
| Item - Air Conditioners and Heat Pumps | Hazardous Location Air Conditioner |
| Standards | ANSI/UL 484 Room A/C, UL, IECEx, Class 2 Div 2, Class 1 Div2 UL Listed For Use in Class I, Div 2, Groups A, B, C and D, ISA 12.12.101, NFPA 70 |
| Hz | 60 |
| Refrigerant Type | R-410a |
| Voltage - Air Conditioners and Heat Pumps | 208/230VAC |
| Compressor Type | Rotary |
| CEER Rating | Not Applicable |
| Heating Method | Not Applicable |
| Sleeve Height | 17-15/16 in |
| Hazardous Location Rating | Group A, Group B, Group C, Group D |
| Operation Mode - HVAC | Cooling Only |
| NEMA Plug Configuration - HVAC | Not Applicable |
| Seacoast Corrosion Protection | Rear Coil |
| Coverage Area - Maximum | 1,500 sq ft |
| Cooling Capacity - Maximum | 24,000 BtuH |
| Heating Capacity - Electric | Not Applicable |
| Hazardous Location Division | Division II |
| Sleeve Width (In.) | 25-15/16 in |
| Power Source | Hardwired |
| Sleeve Length | 27-3/8 in |
| Includes Air Filter | Air Filter Included |
| Duty Rating | Commercial Grade |
| Electric Heating Capacity - Minimum | Not Applicable |
| Coverage Area - Minimum | 1,400 sq ft |
| Mounting Sleeve Included | Sleeve Included |
| Cooling Capacity | 23,500 BtuH |
| Hazardous Location Class | Class I |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
