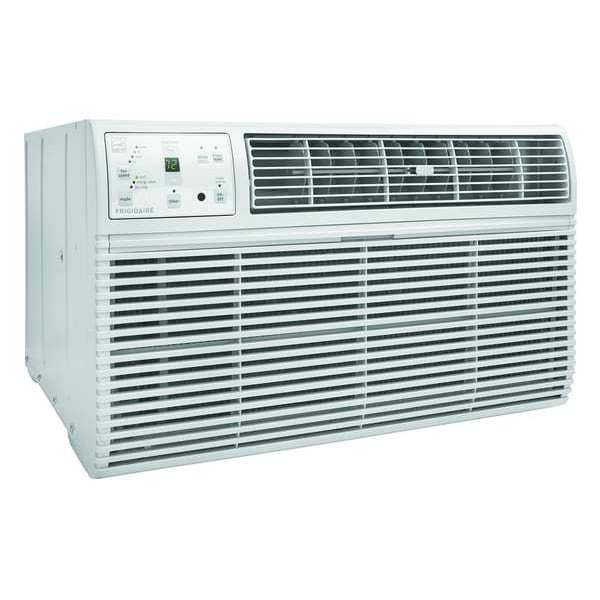

Through-the-Wall Air Conditioner, 208/230V AC, Cool/Heat, 14,000/14,000 BtuH, 24 in W.
| Item | Through-the-Wall Air Conditioner |
|---|---|
| Voltage | 208/230V AC |
| Operation Mode | Cool, Heat |
| BtuH Cooling | 14,000/14,000 |
| Width | 24 in |
| Height | 14-1/2 in |
| Watts | 1490/1490 W |
| Depth | 20-5/8 in |
| NEMA Plug Configuration - Air Conditioners and Heat Pumps | LCDI, 6-20P |
| Air Flow Direction | Six-Way |
| BtuH Heating | 10,600/13,000 |
| Power Cord Length | 6 ft 6 in |
| Sleeve | No |
| Fan Speeds Cooling | 3 |
| Standards | CuL, UL Listed |
| Color | White |
| Fan-Only Speeds | 3 |
| Amps | 7.0/7.5 A |
| CEER Rating | 9.5 |
| Max. Wall Thickness | 18 in |
| Voltage - Air Conditioners and Heat Pumps | 208/230VAC |
| Features | Remote Thermostat, Digital Control |
| Control Type | Electronic |
| High CFM | 310/282/253 |
| Dehumidification Rate | 4.1 lb/hr |
| Operation Mode - Air Conditioners and Heat Pumps | Cool, Heating |
| Heating Method - Air Conditioners and Heat Pumps | Electric |
| Chassis Type | Fixed |
| Refrigerant Type | R-32 |
| Fan Speeds Heating | 3 |
| Item - Air Conditioners and Heat Pumps | Wall Air Conditioner |
| Heating Method | Electric Heat |
| Operation Mode - HVAC | Cooling, Heating |
| NEMA Plug Configuration - HVAC | 6 to 20 P |
| Duty Rating | Residential Grade |
| Number of Speeds | 3 |
| Fits Wall Sleeve Dimensions | 15 1/4" x 25 1/2" x 16", 17 1/2" or 22" |
| Smart Connectivity | No Connectivity |
| Remote Control Functions | On/Off, Temperature |
| Programming Capability | 24 hr On/Off Timer |
| Mounting Sleeve Included | No |
| Cooling Capacity | 14,000/14,000 BtuH |
| Seacoast Corrosion Protection | No Protection |
| Fits Wall Sleeve - H x W x D | 15 1/4 in x 25 1/2 in x 16 in, 17 1/2 in or 22 in |
| Coverage Area - Maximum | 700 sq ft |
| Hazardous Location Division | Not Applicable |
| Power Source | Plug-In |
| Hazardous Location Class | Not Applicable |
| Hazardous Location Rating | Not Applicable |
| Sleeve Length | 21-1/2 in |
| Sleeve Width (In.) | 26 in |
| Coverage Area - Minimum | 550 sq ft |
| Cooling Capacity - Maximum | 14,000 BtuH |
| Sleeve Height | 15-1/2 in |
| Compressor Technology | Fixed Output |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
