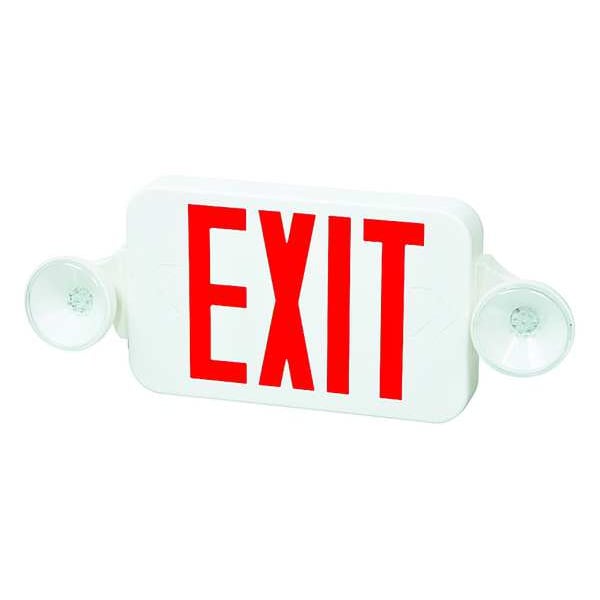

Exit Sign with Emergency Lights, 1 or 2 Faces, LED Lights, Plastic Housing, Ni Cad Backup Battery
| Item | Exit Sign with Emergency Lights |
|---|---|
| Width | 18 in |
| Height | 8-3/16 in |
| Voltage | 120/277V AC |
| Housing Material | Plastic |
| Number of Faces | 1 or 2 |
| Mounting | Universal |
| Lighting Technology | LED |
| Emergency Illumination Time | 90 min |
| Directional Indicators | Universal Field Selectable Chevrons |
| Housing Color | White |
| Battery Chemistry | Nickel Cadmium |
| Letter Color | Red |
| Number of Lamp Heads | 2 |
| Optional Guard | FHECWG |
| Fixture Wattage | 4.1 W |
| Standards | UL 924 |
| Letter Size | 6 in |
| Item - Emergency Lighting and Exit Signs | Exit Sign with Emergency Lights |
| Lamp Head Light Source - Emergency Lighting and Exit Signs | LED |
| Housing Material - Emergency Lighting and Exit Signs | Plastic |
| Depth | 2 in |
| Warranty | 5 yr |
| Voltage - Emergency Lighting and Exit Signs | 120/277 |
| Operating Temp. Range | 20 to 30 deg C |
| Emergency Back Up Battery | Yes |
| Housing Color - Emergency Lighting and Exit Signs | White |
| Head Lamps Adjustable | Yes |
| Directional Indicators - Emergency Lighting and Exit Signs | Universal Field Selectable Chevrons |
| Includes | Push Button |
| Background Color | White |
| Maximum Operating Temperature | 86 deg F |
| Text Height | 6 in |
| Manufacturers Warranty Length | 5 yr |
| Emergency Wattage | 4 W |
| Lamp Head Location | Side |
| Series | FHEC30 |
| Remote Capable | No |
| Diagnostic Testing Function | Test Button |
| Application | Exit Combo |
| Text Color | Red |
| Lamp Wattage | 5 W |
| Compliance Type | None |
| Recommended Single Fixture Spacing | 20 ft |
| Overall Width | 18 in |
| Overall Height | 8-1/4 in |
| Compatible Guard | FHECWG |
| Overall Depth | 2 in |
| Recommended Mounting Height | 8 ft |
| Minimum Operating Temperature | 68 deg F |
| Lamp Head Shape | Round |
| Current | 175 mA |
| Self Diagnostics | No |
| Lamp Head Light Source | LED |
| Emergency Battery Backup | Yes |
| Text Size | 6 in High |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
