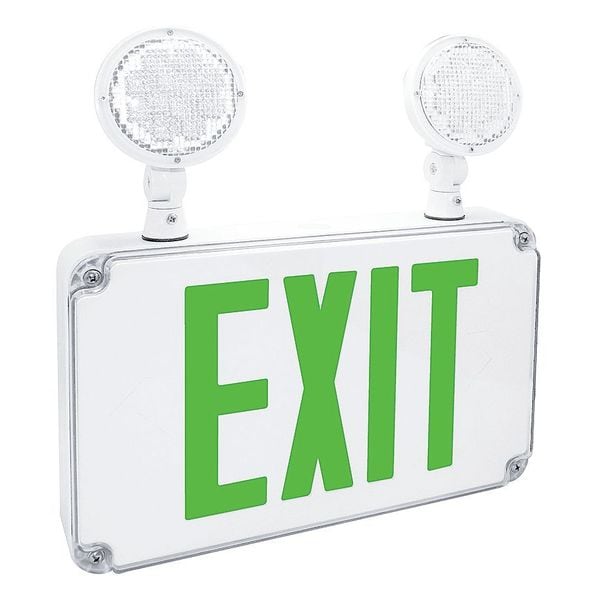

Exit Sign with Emergency Lights, White, 2 Face(s), LED, Wall Mount, Nickel Cadmium
| Item | Exit Sign with Emergency Lights |
|---|---|
| Width | 12-9/16 in |
| Height | 13-1/8 in |
| Voltage | 120/277V AC |
| Housing Material | Plastic |
| Number of Faces | 2 |
| Mounting | Wall |
| Lighting Technology | LED |
| Emergency Illumination Time | 90 min |
| Directional Indicators | Universal Field Selectable Chevrons |
| Housing Color | White |
| Battery Chemistry | Nickel Cadmium |
| Letter Color | Green |
| Fixture Wattage | 4 W |
| Housing Color - Emergency Lighting and Exit Signs | White |
| Operating Temp. Range | 0 to 40 deg C |
| Depth | 2-1/2 in |
| Letter Size | 3/4 in |
| Standards | UL 924 |
| Optional Guard | No |
| Number of Lamp Heads | 2 |
| Lamp Head Light Source - Emergency Lighting and Exit Signs | LED |
| Emergency Back Up Battery | Yes |
| Warranty | 5 yr |
| Housing Material - Emergency Lighting and Exit Signs | Plastic |
| Directional Indicators - Emergency Lighting and Exit Signs | Universal Field Selectable Chevrons |
| Item - Emergency Lighting and Exit Signs | Exit Sign with Emergency Lights |
| Background Color | White |
| Voltage - Emergency Lighting and Exit Signs | 120/277 |
| Maximum Operating Temperature | 104 deg F |
| Self Diagnostics | No |
| Overall Depth | 2-1/2 in |
| Manufacturers Warranty Length | 5 yr |
| Compliance Type | None |
| Diagnostic Testing Function | Test Button |
| Emergency Battery Backup | Yes |
| Recommended Single Fixture Spacing | 20 ft |
| Text Height | 3/4 in |
| Overall Height | 13-1/4 in |
| Number of Bulbs | 2 |
| Text Color | Green |
| Application | Exit Combo |
| Current | 35 mA |
| Lamp Head Light Source | LED |
| Emergency Wattage | 2.24 W |
| Text Size | 3/4 in High |
| Lamp Head Location | Top |
| Remote Capable | No |
| Minimum Operating Temperature | 32 deg F |
| Lamp Head Shape | Round |
| Recommended Mounting Height | 8 ft |
| Series | FHEC34 |
| Overall Width | 12-1/2 in |
| Lamp Wattage | 4.2 W |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
