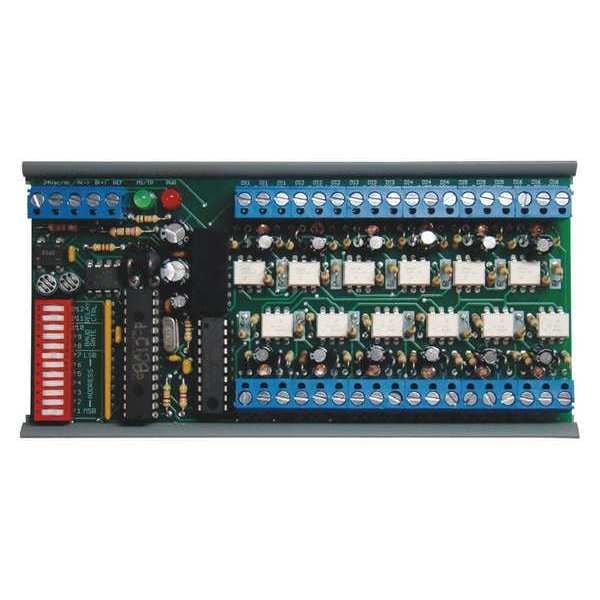

Relé de red BACnet, con 12 entradas binarias y acumulador.
| Item | BACnet Network Relay |
|---|---|
| Standards | BTL Certified, CE Certified, RoHS Compliant |
| Height | 1.75 |
| Dimensions | 4" H x 4" W x 1.8" D (10.2 x 10.2 x 4.6 cm); 1/2" NPT nipple |
| Application | MT212-6 |
| Width | 2.75 |
| Overall Height | 1 3/4 in |
| Includes | Optional End of Line Resistor (EOL) |
| Overall Length | 5-7/8 in |
| Overall Width | 2-3/4 in |
| Relative Humidity Range | 5 to 95% |
| Minimum Operating Temperature | -30 deg F |
| Power Source | 24V AC/DC |
| Includes Power Supply | Yes |
| Maximum Operating Temperature | 140 deg F |
| Type | Modular Panel |
| Approvals | UL listed file #E68805, CE certified, BACnet certified |
| Contact Rating | 30A |
| Power Input | 41 mA @ 24 VDC, 53 mA @ 24 VAC |
| Supply Voltage | 24 VAC @ 111 mA, 24 VDC @ 81 mA, 120 VAC @ 96 mA |
| Baud Rate | 9600, 19200, 38400, 57600, 76800, and 115200 |
| Relay Type | SPDT |
| Communications | BACnet |
| Operating Humidity | 5% to 95% non-condensing |
| Mounting Type | Surface, DIN Rail |
| Duty | Continuous duty |
| Life Expectancy | 10 million cycles minimum |
| Feature | LED |
| Conduit Hub | 1/2" NPT |
| LCD | Track |
| Housing Type | NEMA 1, plenum rated |
| Frequency | 50/60 Hz |
| Operating Temperature | -30° to 140°F |
| Coil Voltage | 24 VAC, 24 VDC |
| LED Indication | Green: network status, Red: relay status |
| Package Quantity | 1 |
