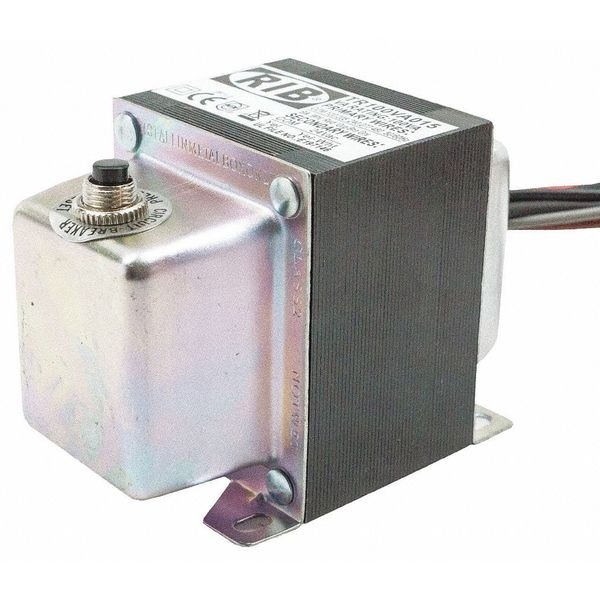

Class 2 Transformer, 100 VA, Not Rated, 24V AC, 120/208/240/277/480V AC
| Item | Class 2 Transformer |
|---|---|
| Input Voltage - Transformer | 120/208/240/277/480V AC |
| Mounting - Transformer | Hub |
| Hz - Electrical | 50/60 Hz |
| Enclosure Type | Enclosed |
| Secondary Connection | 8 in Leads |
| Enclosure Style - Transformer | Open |
| Output Voltage - Transformer | 24V AC |
| VA Rating - Transformer | 100 VA |
| Height | 2.69 in |
| Width | 3.06 in |
| Standards | CE, RoHS, UL Listed |
| Protective Device | Circuit Breaker |
| Phase - Electrical | 1 |
| Primary Connection | Leads |
| Temp. Rise | Not Rated |
| Enclosure Finish | No Finish |
| Depth | 3.65 in |
| Manufacturers Warranty Length | 5 yr |
| Primary Voltage | 120 VAC |
| Application | Power Controller, Powering Sensors, Driving Relays, Driving Digitals I/O Circuits, Voltage Reduction, Magnetic Switches |
| Approvals | Class 2 UL1585 listed US/Canada, E197146 |
| Termination | Leads |
| Connection - Primary | Wire Lead |
| Operating Temperature - Minimum | -30 deg F |
| Wire Lead Length - Primary | 8 in |
| Wire Lead Length - Secondary | 8 in |
| Connection - Secondary | Wire Lead |
| Operating Temperature - Maximum | 140 deg F |
| Package Quantity | 1 |
