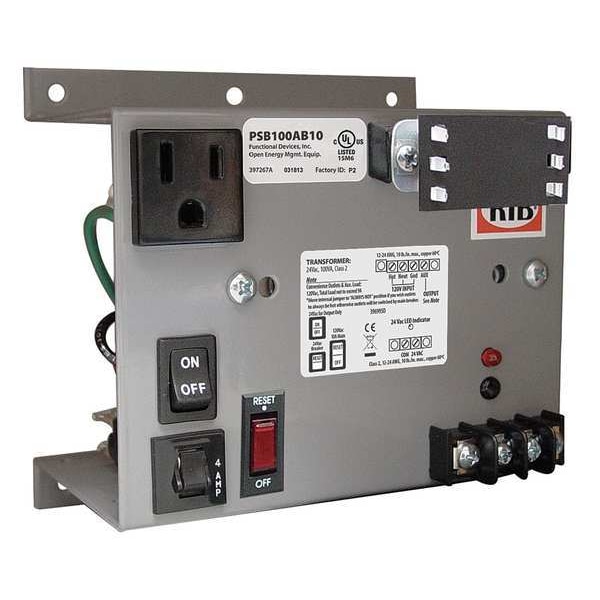

Class 2 Transformer, 100 VA, Not Rated, Not Rated, 24V AC, 120V AC
| Item | Class 2 Transformer |
|---|---|
| Input Voltage - Transformer | 120V AC |
| Mounting - Transformer | Wall |
| Hz - Electrical | 50/60 Hz |
| Temp. Rise | Not Rated |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| VA Rating - Transformer | 100 VA |
| Enclosure Style - Transformer | Open |
| Enclosure Finish | Powder Coated |
| Secondary Connection | 8 in Leads |
| Phase - Electrical | 1 |
| Enclosure Type | Open |
| Depth | 5-1/4 in |
| Width | 3-3/4 in |
| Primary Connection | Screw terminals |
| Height | 5.2 in |
| Enclosure Rating | Not Rated |
| Standards | CE, RoHS, UL Class 2, UL Listed, UL508 |
| Output Voltage - Transformer | 24V AC |
| Protective Device | Circuit Breaker |
| Max. Ambient Temperature | 40° C |
| Secondary | 24 Vac, w/ LED Indicator |
| 24 Vac ON/OFF | On / Off Switch |
| Over Current Protection | Circuit Breaker (PSB100AB10) |
| Approvals | Class 2 (UL Approved UL5085-3), UL916, UL508, C-UL, CE |
| Main Breaker ON/OFF | Switch / Breaker (10 Amp) (Kills power to entire unit: Outlets, Aux. Output, & Transformer)* Total Combined Output 9A |
| Transformer | One 100 VA Split-Bobbin (PSB100AB10) |
| Housing Material | Metal |
| Circuit Breaker Size | 10 A |
| Wire Connection Type | Screw Terminals |
| Operating Temperature - Maximum | 104 deg F |
| Overcurrent Protection | Circuit Breaker |
| Includes On/Off Switch | Individual Output On/Off Switch |
| Package Quantity | 1 |
