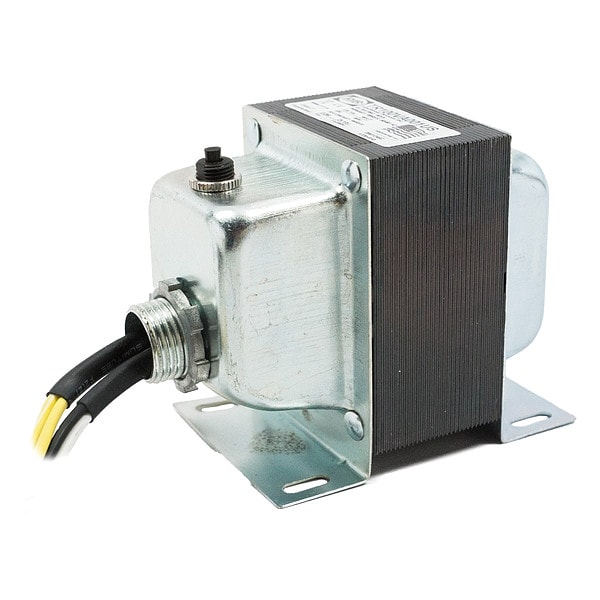

Class 2 Transformer, 100 VA, Not Rated, Not Rated, 24V AC, 120V AC
| Item | Class 2 Transformer |
|---|---|
| Input Voltage - Transformer | 120V AC |
| Mounting - Transformer | Hub |
| Hz - Electrical | 50/60 Hz |
| Temp. Rise | Not Rated |
| Depth | 6 in |
| Enclosure Finish | No Finish |
| Enclosure Type | Open |
| VA Rating - Transformer | 100 VA |
| Phase - Electrical | 1 |
| Output Voltage - Transformer | 24V AC |
| Enclosure Rating | Not Rated |
| Secondary Connection | 8 in Leads |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Width | 2.88 in |
| Height | 3.38 in |
| Standards | CE, RoHS, UL Listed |
| Enclosure Style - Transformer | Open |
| Protective Device | Circuit Breaker |
| Primary Connection | Pigtails |
| Includes | Circuit Breaker |
| Manufacturers Warranty Length | 5 yr |
| Wire Length | 9-1/2 in (Typical w/ .5" Strip) |
| Approvals | Class 2 UL5085-3 Listed, C-UL, CE |
| Over Current Protection | Circuit Breaker |
| Construction | Split-Bobbin |
| MTBF | 100,000 Hours @ 77° F |
| Operating Temperature | -30 to 140° F |
| Wire Lead Length - Primary | 8 in |
| Connection - Primary | Wire Lead |
| Connection - Secondary | Wire Lead |
| Operating Temperature - Maximum | 140 deg F |
| Operating Temperature - Minimum | -30 deg F |
| Wire Lead Length - Secondary | 8 in |
| Package Quantity | 1 |
