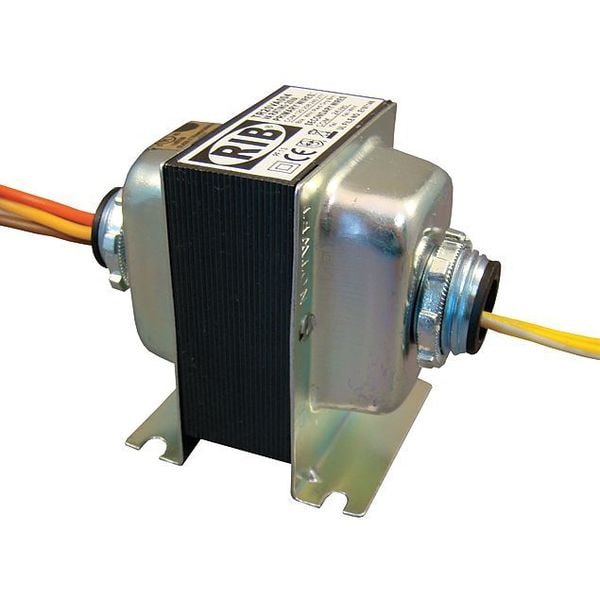

Class 2 Transformer, 20 VA, Not Rated, Not Rated, 24V AC, 120/208/240/277V AC
| Item | Class 2 Transformer |
|---|---|
| Input Voltage - Transformer | 120/208/240/277V AC |
| Mounting - Transformer | Hub |
| Hz - Electrical | 50/60 Hz |
| VA Rating - Transformer | 20 VA |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Enclosure Finish | No Finish |
| Primary Connection | Pigtails |
| Enclosure Type | Open |
| Height | 2.62 in |
| Standards | CE, RoHS, UL Listed |
| Includes | Inherently Limited |
| Protective Device | Inherently Limited |
| Phase - Electrical | 1 |
| Width | 2.31 in |
| Enclosure Rating | Not Rated |
| Secondary Connection | 8 in Leads |
| Output Voltage - Transformer | 24V AC |
| Enclosure Style - Transformer | Open |
| Depth | 1.89 in |
| Temp. Rise | Not Rated |
| Manufacturers Warranty Length | 5 yr |
| Approvals | Class 2 UL1585 listed US/Canada, E197146 |
| Application | Power Controller, Powering Sensors, Driving Relays, Driving Digitals I/O Circuits, Voltage Reduction, Magnetic Switches |
| Termination | Leads |
| Over Current Protection | Inherent |
| Primary Voltage | 120 VAC |
| Operating Temperature - Maximum | 140 deg F |
| Wire Lead Length - Primary | 8 in |
| Wire Lead Length - Secondary | 8 in |
| Connection - Secondary | Wire Lead |
| Connection - Primary | Wire Lead |
| Operating Temperature - Minimum | -30 deg F |
| Package Quantity | 1 |
