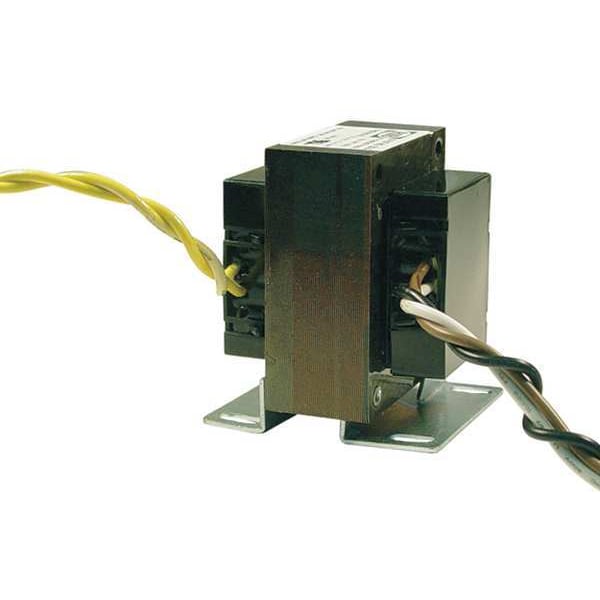

Class 2 Transformer, 50 VA, Not Rated, Not Rated, 24V AC, 120/277V AC
| Item | Class 2 Transformer |
|---|---|
| Input Voltage - Transformer | 120/277V AC |
| Mounting - Transformer | Foot |
| Hz - Electrical | 50/60 Hz |
| Secondary Connection | 8 in Leads |
| Depth | 2.17 in |
| VA Rating - Transformer | 50 VA |
| Enclosure Type | Open |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Width | 2.47 in |
| Phase - Electrical | 1 |
| Height | 2.89 in |
| Enclosure Rating | Not Rated |
| Standards | CE, cUL, RoHS |
| Protective Device | Inherently Limited |
| Primary Connection | Pigtails |
| Temp. Rise | Not Rated |
| Enclosure Finish | No Finish |
| Output Voltage - Transformer | 24V AC |
| Enclosure Style - Transformer | Open |
| Wire Lead Length - Primary | 28 in |
| Operating Temperature - Minimum | -30 deg F |
| Connection - Secondary | Wire Lead |
| Operating Temperature - Maximum | 140 deg F |
| Wire Lead Length - Secondary | 28 in |
| Connection - Primary | Wire Lead |
| Package Quantity | 1 |
