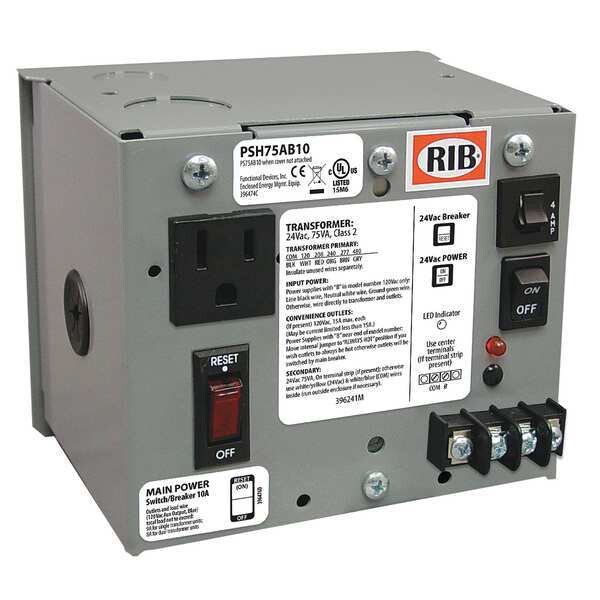

Class 2 Transformer, 75 VA, NEMA 1, Not Rated, 120V AC, 120/208/240/277/480V AC
| Item | Class 2 Transformer |
|---|---|
| Input Voltage - Transformer | 120/208/240/277/480V AC |
| Mounting - Transformer | Wall |
| Hz - Electrical | 50/60 Hz |
| Enclosure Rating | NEMA 1 |
| Height | 4-1/2 in |
| Enclosure Finish | Powder Coated |
| Standards | CE, OSHPD Seismic Certified, RoHS, UL Class 2, UL Listed |
| Enclosure Type | Enclosed |
| Secondary Connection | Screw Terminals |
| Width | 5.43 in |
| Depth | 4-1/2 in |
| VA Rating - Transformer | 75 VA |
| Protective Device | Circuit Breaker |
| Phase - Electrical | 1 |
| Primary Connection | Pigtails |
| Includes | 10A Main Breaker Switch, 120V AC Convenience Outlets, Finger-Safe Terminals, LED Power Indicator, On/Off Control |
| Temp. Rise | Not Rated |
| Enclosure Style - Transformer | Enclosed |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Output Voltage - Transformer | 120V AC |
| Transformer | One 75 VA Split-Bobbin |
| Series | PSH75A Series |
| Approvals | Class 2 (UL Approved UL5085-3), UL916, C-UL, CE |
| Secondary Configuration | External Terminal Strip |
| Main Breaker on Input Power | 10 Amp Switch / Breaker |
| 24 Vac ON/OFF | On / Off Switch, Breaker |
| Number of Outputs | 1 |
| Overcurrent Protection | Circuit Breaker |
| Includes On/Off Switch | Individual Output On/Off Switch |
| Number of Convenience Outlets | 1 |
| Wire Connection Type | Screw Terminals |
| Housing Material | Metal |
| Circuit Breaker Size | 10 A |
| Package Quantity | 1 |
