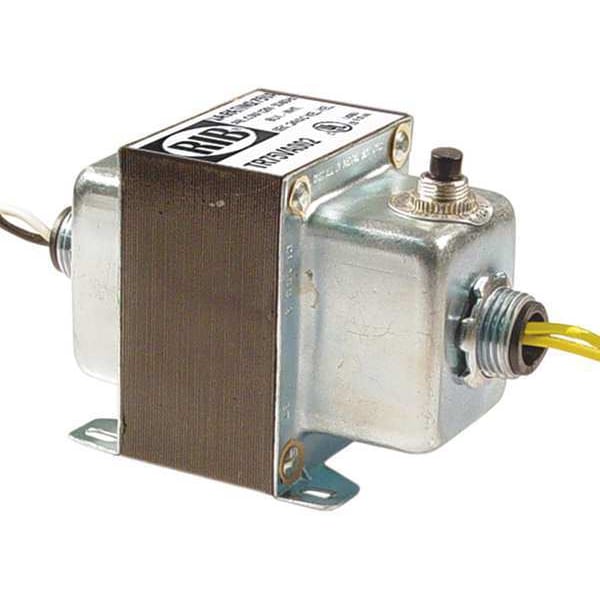

Class 2 Transformer, 75 VA, Not Rated, Not Rated, 24V AC, 120V AC
| Item | Class 2 Transformer |
|---|---|
| Input Voltage - Transformer | 120V AC |
| Mounting - Transformer | Hub |
| Hz - Electrical | 50/60 Hz |
| Enclosure Type | Open |
| Enclosure Style - Transformer | Open |
| VA Rating - Transformer | 75 VA |
| Primary Connection | Pigtails |
| Secondary Connection | 8 in Leads |
| Standards | CE, RoHS, UL Listed |
| Phase - Electrical | 1 |
| Width | 3.89 in |
| Enclosure Finish | No Finish |
| Includes | Circuit Breaker |
| Protective Device | Circuit Breaker |
| Enclosure Rating | Not Rated |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Height | 3.01 in |
| Depth | 2-1/2 in |
| Temp. Rise | Not Rated |
| Output Voltage - Transformer | 24V AC |
| Manufacturers Warranty Length | 5 yr |
| Application | Power Controller, Powering Sensors, Driving Relays, Driving Digitals I/O Circuits, Voltage Reduction, Magnetic Switches |
| Approvals | Class 2 UL1585 listed US/Canada, E197146 |
| Primary Voltage | 120 VAC |
| Termination | Leads |
| Operating Temperature - Maximum | 140 deg F |
| Connection - Secondary | Wire Lead |
| Wire Lead Length - Secondary | 8 in |
| Wire Lead Length - Primary | 8 in |
| Connection - Primary | Wire Lead |
| Operating Temperature - Minimum | -30 deg F |
| Package Quantity | 1 |
