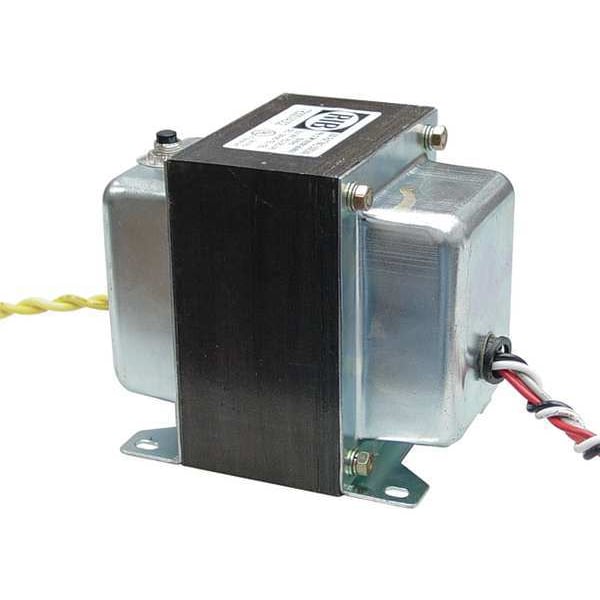

Control Transformer, 300 VA, 60°C, 24V AC, 120/208/240/480V AC
| Item | Control Transformer |
|---|---|
| Input Voltage - Transformer | 120/208/240/480V AC |
| Mounting - Transformer | Foot |
| Hz - Electrical | 50/60 Hz |
| Enclosure Style - Transformer | Open |
| Height | 4-1/2 in |
| Temp. Rise | 60 deg C |
| Manufacturers Warranty Length | 5 yr |
| Width | 5.49 in |
| Enclosure Finish | No Finish |
| VA Rating - Transformer | 300 VA |
| Includes | Not Applicable |
| Depth | 3-3/4 in |
| Phase - Electrical | 1 |
| Standards | CE, RoHS, UL Listed |
| Protective Device | Circuit Breaker |
| Output Voltage - Transformer | 24V AC |
| Fused | No |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Approvals | Class 2 UL1585 listed US/Canada, E197146 |
| Termination | Leads |
| Primary Voltage | 120 VAC |
| Application | Power Controller, Powering Sensors, Driving Relays, Driving Digitals I/O Circuits, Voltage Reduction, Magnetic Switches |
| Operating Temperature - Maximum | 140 deg F |
| Operating Temperature - Minimum | -30 deg F |
| Package Quantity | 1 |
