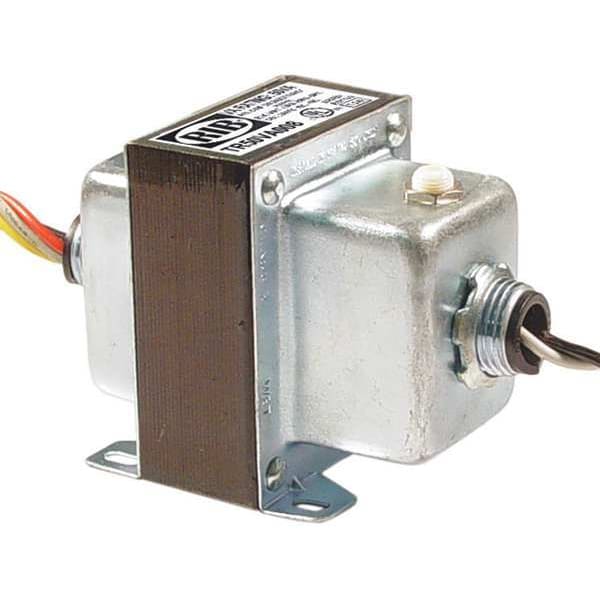

Control Transformer, 50 VA, Not Rated, Not Rated, 120V AC, 208/240/277/480V AC
| Item | Control Transformer |
|---|---|
| Input Voltage - Transformer | 208/240/277/480V AC |
| Mounting - Transformer | Hub |
| Hz - Electrical | 50/60 Hz |
| Temp. Rise | Not Rated |
| Primary Connection | Pigtails |
| Enclosure Finish | No Finish |
| Enclosure Style - Transformer | Open |
| Phase - Electrical | 1 |
| Output Voltage - Transformer | 120V AC |
| Depth | 2.51 in |
| Protective Device | Circuit Breaker |
| Enclosure Rating | Not Rated |
| Enclosure Type | Open |
| Includes | Not Applicable |
| Height | 3.01 in |
| Secondary Connection | 8" Leads |
| VA Rating - Transformer | 50 VA |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Width | 3.44 in |
| Standards | CE, RoHS, UL Listed |
| Manufacturers Warranty Length | 5 yr |
| Application | Power Controller, Powering Sensors, Driving Relays, Driving Digitals I/O Circuits, Voltage Reduction, Magnetic Switches |
| Approvals | Class 2 UL1585 listed US/Canada, E197146 |
| Primary Voltage | 208 VAC |
| Termination | Leads |
| Operating Temperature - Maximum | 140 deg F |
| Operating Temperature - Minimum | -30 deg F |
| Package Quantity | 1 |
